A waterproof trolling motor receptacle you can install yourself.

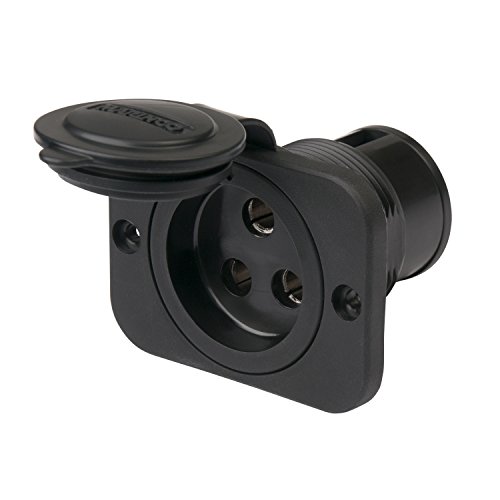

The Marinco 70A Trolling Motor Receptacle is designed with a compact, waterproof footprint for modern trolling motors. The receptacle is keyed to mate with the Marinco 70A Trolling Motor Plug which features integrated strain relief and thumbprint locator. Corrosion-resistant components and watertight sealing cap ensure your system will withstand harsh marine environments.
Key Features
- 70A continuous rating
- Universal design for 2- or 3-wire configuration of 12V, 24V, 12/24V, 24/36V, 36V or 48V systems
- Watertight sealing cap
- Corrosion-resistant, plated brass electrical components
- Floating pin design for maximum connectivity and durability
- Accepts up to 6 gauge wire
Specifications
- Gender: Female
- Mating Part: Marinco 70A Trolling Motor Plug, Model 17950106
- Terminals: Double set screw with ferrule
- Wire Size: 8 gauge and 6 gauge. (4 gauge can be used with 4AWG ferulles, sold separately)
- Mounting Hole Size: 1 3/4" diameter
- Mounting Thickness: 1" maximum
- Receptacle Body: Nylon
- Contacts: Nickel plated brass
- Mounting Screws: Stainless steel with black oxide coating
- Terminal Screws: Nickel plated steel
