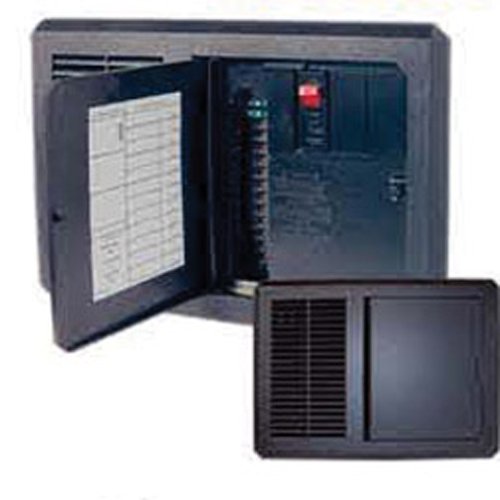

Progressive Dynamics PD4045CSV 45 Amp Inteli-Power Replacement Converter Section

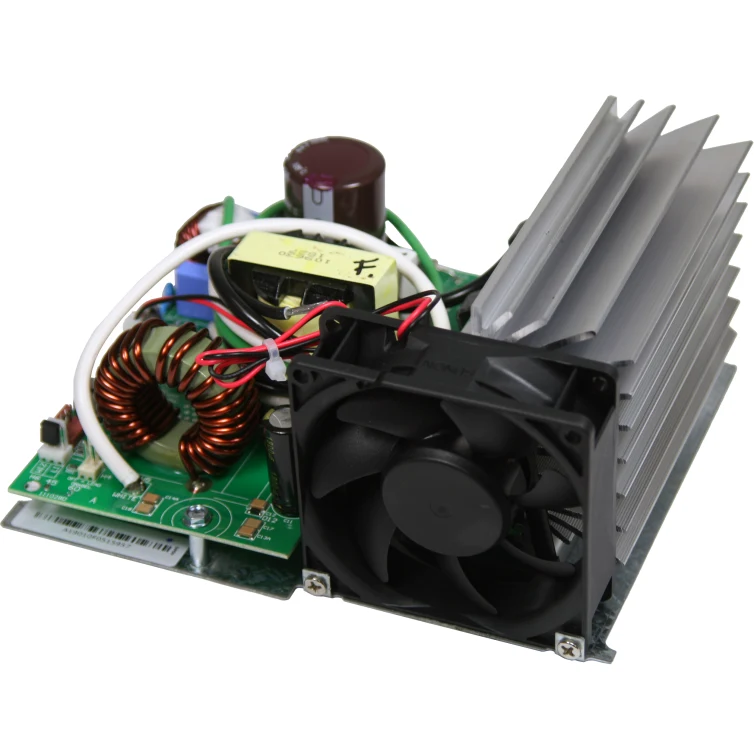

The Progressive Dynamics PD4045CSV is a 45-amp replacement converter section designed specifically for the Inteli-Power 4000 Series RV Power Control Centers. This converter section is a direct slip-in replacement for the PD4045KA power center, converting 105-130V AC power to 13.6V DC for your RV's 12-volt lighting, appliances, and battery charging needs.

Charge Wizard Technology:

Features Progressive Dynamics' patented four-stage Charge Wizard charging system that automatically monitors battery status and adjusts output voltage accordingly. This intelligent system can recharge batteries to 90% capacity in approximately 3-6 hours.

• BOOST Mode (14.4V) - Rapidly brings batteries up to 90% charge
• NORMAL Mode (13.6V) - Safely completes the charging cycle
• STORAGE Mode (13.2V) - Maintains charge with minimal gassing or water loss
• EQUALIZATION Mode (14.4V) - Activates every 21 hours for 15 minutes to prevent battery stratification and sulfation

Key Features:

• Compatible with both lead-acid and lithium batteries via internal switchable charging profiles
• Maximum continuous output of 725 watts at 45 amps
• Built-in reverse battery protection with easy-to-replace fuses
• Automatic thermal protection and electronic current limiting
• Auto-variable speed cooling fan for efficient operation
• High and low AC input voltage protection (105-130V AC, 50-60Hz)
• Greater than 80% efficiency rating
• Easy front-access installation with compact design

This converter section includes the built-in Charge Wizard technology and lithium switch, making it an ideal upgrade for RVers looking to add lithium battery compatibility to their existing Progressive Dynamics power center. Made in the USA with a 2-year manufacturer warranty.
