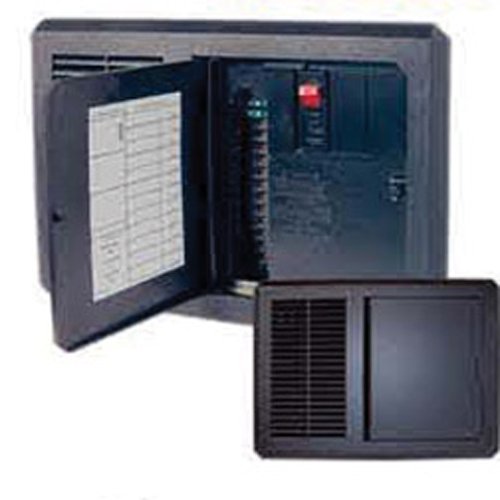

Progressive Dynamics PD4045KV 45 Amp RV Power Converter Distribution Panel

The Progressive Dynamics PD4045KV Inteli-Power 4000 Series is the industry's smallest all-in-one 45 amp distribution panel and converter system, combining AC/DC power distribution with an integrated battery charging converter in one compact unit. Ideal for RVs, travel trailers, and campers, this "Mighty Mini" system features the built-in Charge Wizard technology for intelligent four-stage battery charging that can recharge batteries to 90% capacity in approximately 3-6 hours.

Power Specifications:

• Converts 105-130 volt AC to 13.6 volt DC output
• 45 amp maximum output with 725 watts continuous power
• 80% efficiency rating
• Works with both lithium and lead-acid batteries with mode selection switch

Distribution Features:

• AC distribution panel rated for 120 VAC at 30 amps with up to 7 branch circuits
• DC section with 12 branch fuse holders: two positions for 30 amp fuses, ten positions rated up to 20 amps each
• All wire tail connections for flexible installation
• Front-accessible converter section for easy maintenance

Protection and Safety:

• Reverse battery protection with easy-to-replace fuses
• Reverse battery blown fuse indicator for quick diagnosis
• Electronic current limiting
• High and low AC input protection
• Automatic thermal protection with intelligent variable-speed cooling fan
• Snap-lock cover stays secure while traveling, opens with a touch

This compact, lightweight power center is pre-wired for straightforward installation and provides comprehensive power management in a space-saving design. The microprocessor-controlled Charge Wizard automatically adjusts charging voltage based on battery condition, extending battery life and performance.
