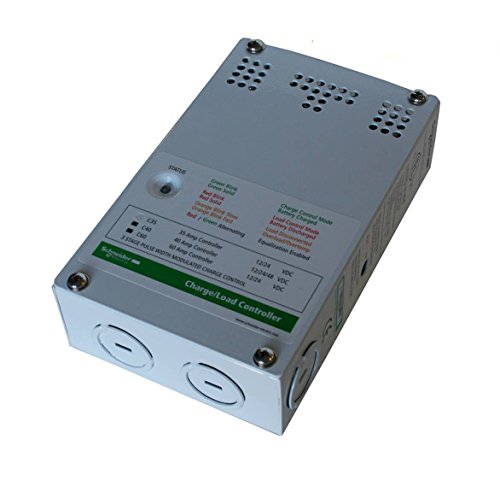

The Xantrex C35 is a versatile, fully solid-state solar charge controller designed for reliable off-grid and backup power systems. This microprocessor-driven controller handles up to 35 amps and is field configurable for both 12V and 24V battery systems, making it suitable for a wide range of solar applications.
Versatile Operating Modes:
The C35 can be configured for three distinct operating modes: PV battery charging, DC load control, or DC diversion operation. This flexibility makes it an ideal solution for virtually any DC charging source, from solar panels to wind turbines.
Advanced Charging Technology:
Featuring pulse width modulated (PWM) multi-stage charging with automatic temperature compensation, the C35 maximizes battery life and system performance. The controller automatically disconnects from the battery at night to prevent reverse current drain, and its powerful microprocessor ensures silent, efficient operation.
Key Features:
- 35 amp capacity with 12V/24V field-selectable operation
- PWM multi-stage temperature compensated charging for optimal battery health

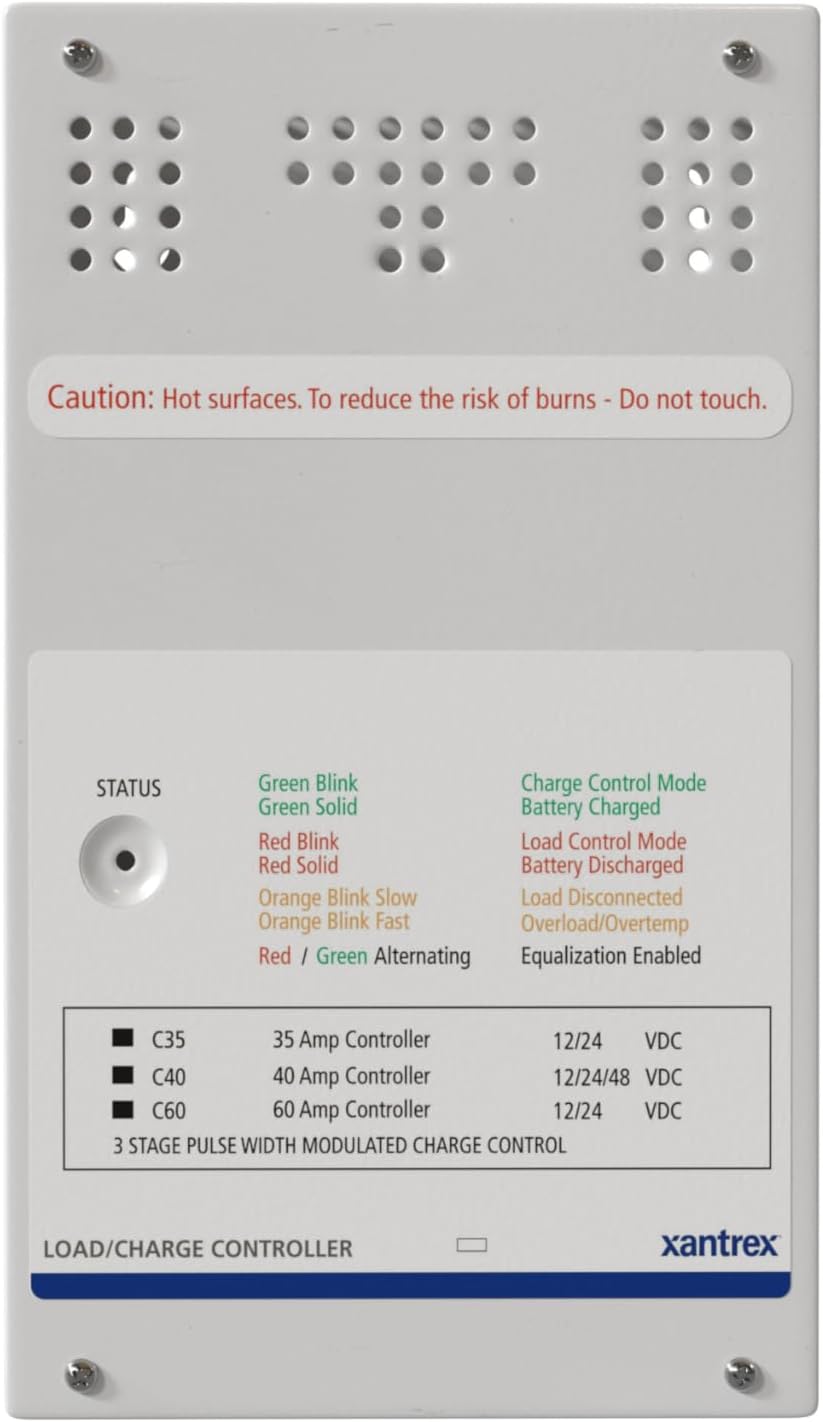

- Multi-color LED charge status indicator for at-a-glance system monitoring
- Compatible with optional remote display showing cumulative amp hours
- Electronic protection against short-circuit, overload, and over-temperature conditions
- Field adjustable voltage and battery set points for custom applications
- Conformal-coated circuit boards and powder-coated enclosure for harsh environments
- Compatible with negative ground and ungrounded systems
- UL and cUL listed for safety and reliability
- Two-year standard warranty
Built to withstand hostile environments, the C35 features conformal-coated boards and a durable powder-coated enclosure. Whether you're installing a remote cabin solar system, RV setup, or marine power solution, the Xantrex C35 delivers dependable performance and long-term reliability.
