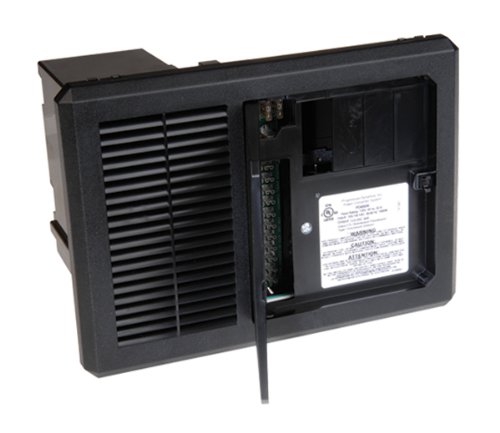

Progressive Dynamics PD4060KV 60 Amp RV Power Center with Inteli-Power Converter

The Progressive Dynamics PD4060KV is a compact all-in-one AC/DC distribution panel and Inteli-Power converter system, known as the "Mighty Mini" for its industry-leading small footprint. This 60-amp power center combines power distribution and battery charging in a single unit, making it ideal for RVs, travel trailers, and motorhomes where space is at a premium.

Inteli-Power Converter with Built-In Charge Wizard:

The integrated Charge Wizard uses microprocessor technology to automatically monitor battery voltage and select the optimal charging mode. The system operates in four stages: Boost Mode (14.4V) rapidly charges batteries to 90% capacity in 3-6 hours, Normal Mode (13.6V) safely completes the charge, Storage Mode (13.2V) maintains charge with minimal water loss during extended storage, and Equalization Mode (14.4V) prevents stratification and sulfation every 21 hours. This intelligent charging extends battery life by 2-3 times compared to conventional converters.

Key Features:

• 60-amp converter output with 1000-watt continuous power (converts 105-130V AC to 13.6V DC)
• Lithium-compatible switch allows use with lithium-ion, flooded lead-acid, AGM, and gel batteries
• AC distribution panel rated for 120VAC at 30 amps with up to 7 branch circuit breakers
• DC section with 12 branch fuse holders: two 30-amp positions and ten 20-amp positions
• Front-accessible converter section and large wiring compartment for easy installation and maintenance
• Snap-lock cover stays secure during travel, opens with a touch
• Reverse battery protection with LED indicator for blown fuses
• Electronic current limiting and automatic thermal protection
• High and low AC input protection
• Intelligent variable-speed cooling fan

Compact dimensions of 12.28" W x 8.875" H x 7.25" D with a cutout size of 10.75" W x 7.25" H make this the smallest all-in-one distribution panel/converter system available. Pre-wired design with wire tail connections simplifies installation. The PD4060KV is a complete power management solution for recreational vehicles requiring reliable battery charging and efficient power distribution.
