Kwikee Products Co 379145 RV Step Motor Conversion Kit for A Linkage

The Kwikee Products Co 379145 is an upgraded replacement parts kit designed for Kwikee electric RV steps series 22, 23, 28A, 30, 32, 33, 34, 35, 36, 38, and 40. This comprehensive kit upgrades old style motors and control boards to the new, more current style, providing improved reliability and performance for your RV entry steps.

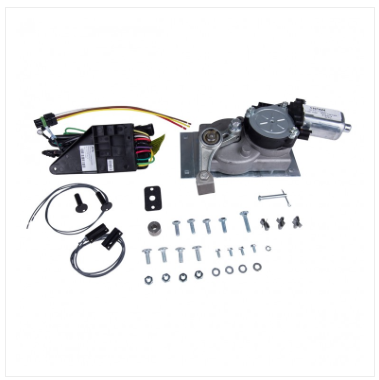

Complete Kit Includes:

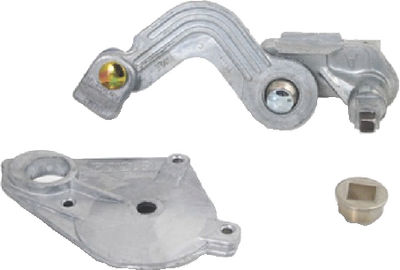

• IMGL integrated motor/gear box/linkage assembly with curved "A" linkage
• 909510001 control unit with clevis and cotter pin
• 4-way pigtail wiring harness and all necessary fasteners
• Door switch and mounting hardware

Key Performance Features:

• 40% more motor torque delivers strong lock-out and solid feel
• Fully-sealed dual ball bearings improve efficiency and require no maintenance while case halves seal to protect gears from elements
• Investment cast zinc-plated steel linkage assembly is strong and more resistant to corrosion
• Brass spherical outer cage hardened ball in the linkage is stronger, wears longer and will not oblong

Smart Control Features:

• The 9510 control unit keeps the step open when the door is open and allows locking in extended position
• Automatic ignition override makes step follow the door
• Ignition override system prevents vehicle operation with step extended, automatically retracting when ignition is turned on

This Lippert part number 379145 replaces the original Kwikee part number 909770000 with no changes to the actual product. The integrated motor kit upgrades motors on Kwikee electric RV entry steps manufactured before 1999.
