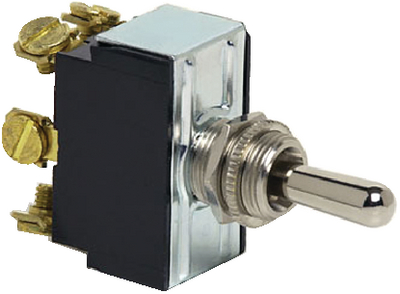

Cole Hersee 55054BP (On)-Off-(On) Momentary Toggle Switch DPDT 25A

The Cole Hersee 55054BP is a heavy-duty double pole, double throw (DPDT) toggle switch with momentary positions, designed for reliable electrical control in automotive, marine, and industrial applications. This versatile switch features a center-off position with momentary (On) positions on both sides, returning to the off position when released.

Key Specifications:

• Voltage Rating: 12-36V DC
• Current Rating: 25 amps at 12V DC
• Configuration: DPDT (Double Pole, Double Throw)
• Switch Action: (On)-Off-(On) - both end positions are momentary
• Handle Size: Standard 11/16 inch diameter
• Contact Material: Silver contacts for superior conductivity and corrosion resistance

The momentary function makes this switch ideal for applications requiring temporary activation, such as winch controls, power window override, accessory circuits, or any application where you need spring-return operation. The DPDT configuration allows control of two separate circuits simultaneously or enables reversing polarity for motor direction control.

Cole Hersee switches are built to withstand harsh environments and deliver long-lasting performance in demanding automotive, marine, RV, and powersports applications.
