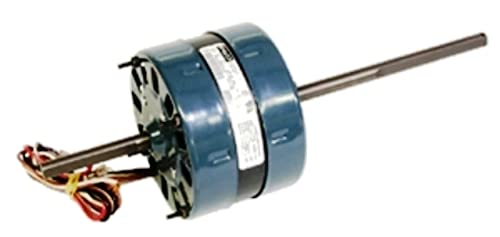

RVP Products 1468A3069 Coleman Mach RV Air Conditioner Condenser Fan Motor

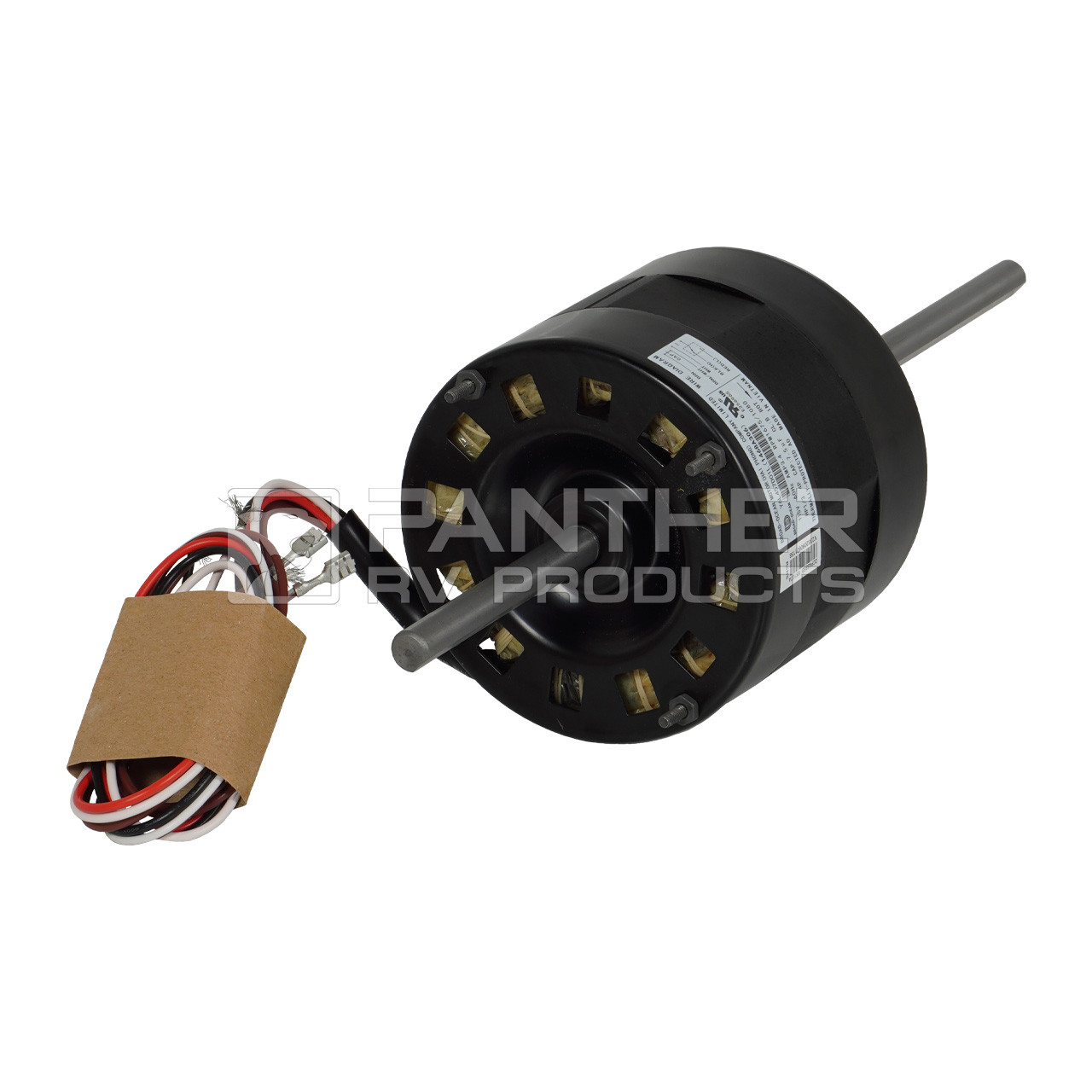

The RVP Products 1468A3069 is an OEM replacement condenser fan motor designed for Coleman Mach 6000 and 8000 series RV air conditioning units. This motor powers the fan and blower wheel that moves air through the RV's air conditioning system, generating the force required to move air through the system.

Technical Specifications:

• 115V AC, 1/3 HP, 60 Hz, dual-speed operation at 1675/1080 RPM
• 3.4 Amp draw, 2-speed motor
• Single phase, double-shafted design with open construction, air over cooling
• Motor diameter: 5 inches, shaft dimensions: 7-7/8" x 1/2" x 3-5/8"
• Bolt pattern: 4-1/2 inches
• Clockwise rotation (lead end), thermally protected
• Permanent Split Capacitor (PSC) design requiring a 7.5 MFD 370V capacitor

Reliable Shaded Pole Design:

This shaded pole motor creates a rotating magnetic field using an AC power source, resulting in low noise, high reliability, and low maintenance. It is designed to operate at high speeds for extended periods and is built to withstand the harsh conditions of RV travel.

Compatibility:

This motor fits Coleman models 6797, 6799, 8332, 8333, 8335, 8433, 8535, 45203, 45253, 45263, 48004, 48014, and 48054. Supersedes part numbers 1468-3069 and 1468-306. Cross-references to Fasco D1092.
