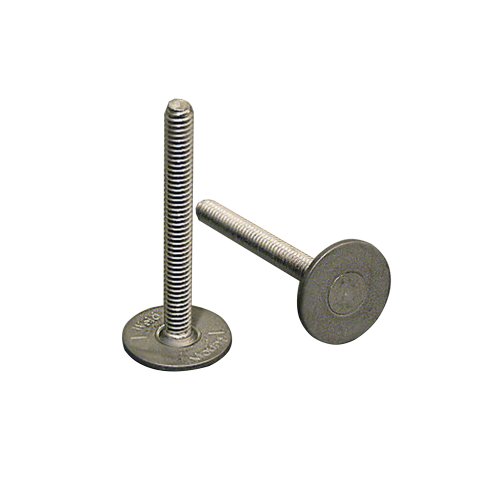

Weldmount 83220 Stainless Steel Panel Stud 0.62" Base 8-32 Thread 1.25" Tall

The Weldmount 83220 is a versatile stainless steel panel stud designed for secure mounting applications in marine, automotive, and industrial environments. This compact mounting solution features a 0.62" diameter base plate with a 1.25" tall stud threaded with standard #8-32 threads.

Key Features:

• Stainless steel construction for superior corrosion resistance
• 0.62" diameter base plate for stable mounting surface
• 1.25" tall stud with #8-32 thread pattern
• 300 lbs tensile strength and 375 lbs shear strength
• Maximum torque load rating of 45 inch-pounds
• Ideal for bonding to composite, fiberglass, and metal surfaces

Originally developed for backside dash panel mounting to consoles, these small panel studs have proven invaluable for securing wire clamps, electronics brackets, and other small components to composite surfaces. The adhesive-mount design eliminates the need for drilling while providing exceptional holding power. Perfect for marine applications where corrosion resistance and reliable attachment are critical.
