Evolution Autopilots combine advanced aerospace guidance technology with Raymarine’s marine autopilot expertise to deliver a new level of accurate autopilot control.
The EV-100 Power Autopilot
EV-100 Power is designed for smaller hydraulically-steered powerboats. The 0.5L hydraulic pump operates the boat’s steering mechanism as part of a Raymarine autopilot system. It is primarily designed for use on boats with an existing hydraulic steering system. Alternatively, you can use this pump on a boat with mechanical steering in conjunction with a secondary steering ram.
Evolution has no need of a setup compass swing or calibration, and does not need to be adjusted to the boat in which it is installed. This innovative breakthrough in autopilot intelligence uses Evolution AI™ control algorithms which enable Evolution autopilots to perceive their environment and instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.
EV1 Sensor Core: At the heart of the Evolution system is the ultra-compact, EV sensor core—a nine-axis heading sensor and full-function course computer. Around the same size as a typical marine GPS sensor, the EV sensor core can be bracket-mounted or flush-mounted horizontally, and can be installed above or below deck (it’s IPX6 water-resistant) as space and practicality dictate.
SeaTalkng NMEA2000 Networking: EV-1 uses SeaTalkng cabling for a single power and data connection to the SeaTalkng bus and the Actuator Control Unit (ACU) which connects to the same bus to provide power and signal to a Raymarine hydraulic or mechanical autopilot drive system.
p70R Autopilot Control Head: Autopilot control is via the p70R control head. Setting-up an Evolution autopilot takes just 30 seconds; select the boat type—large power, small power, or sail; select the drive type—hydraulic, mechanical, or outboard; and choose the performance level—performance, cruise, or leisure, it is as easy as that.
0.5ltr Hydraulic Pump(12V): The 0.5ltr Hydraulic Pump operates the boat’s steering mechanism. It is primarily designed for use on boats with an existing hydraulic steering system. Alternatively, you can use this pump on a boat with mechanical steering in conjunction with a secondary steering ram.
Installation Notes
NOTE1: When sizing an Evolution system for your boat, always take the fully laden displacement weight of your vessel into account, this is often 20% above the designed displacement.
NOTE2: Evolution Autopilots communicate via SeaTalkng. A SeaTalkng to NMEA Converter Kit (E22158) may be required to connect older Raymarine or non-Raymarine displays. Raymarine software version 1.21 is also a minimum requirement.
Specifications
- Boat Type: Hydraulically-steered powerboats
- Drive Type: Hydraulic
- Hydraulic Ram Capacity: 3.1-9cu. in. (50-150cc)
- Controls: p70R
- Amperage: EV-1: 30mA, ACU-100: 30mA-7A; Control head: 134mA
- Included Equipment: EV-1 Sensor Core, ACU-100 Actuator Control Unit, p70R Control Head, 0.5L Hydraulic Pump and necessary cables for system connectivity
- Data Interface: SeaTalkng, NMEA 2000
- Warranty: Three years (with product registration)
What's in the Box

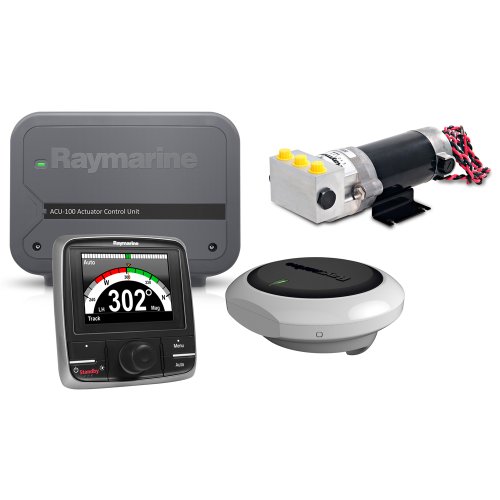

- EV1 Sensor Core
- ACU-100
- p70R Autopilot Control Head
- 0.5ltr Hydraulic Pump(12V)
- Evolution Cabling Kit (Part Number R70160) which includes: SeaTalkng Power Cable (0.4m), SeaTalkng Backbone Cable (5m), SeaTalkng Spur Cable (0.4m), SeaTalkng 5-way Connector Block, 2 SeaTalkng T-piece Connectors, 2 SeaTalkng Terminators
