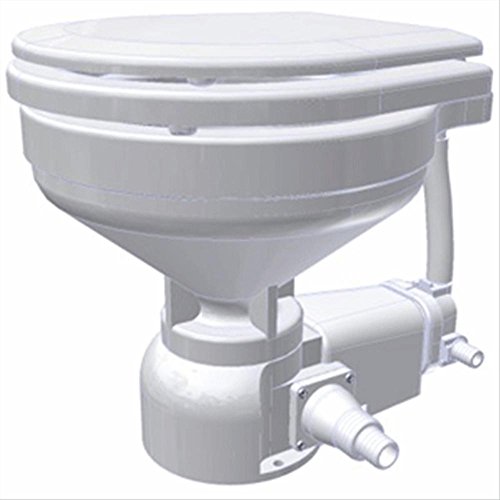

Raritan Engineering 160MI012 Sea Era Electric Marine Toilet with Integral Pump 12V

The Raritan Sea Era is an economical, high-performance electric macerating marine toilet engineered for compact installations. This marine-size model features an integral raw water intake pump with all connections conveniently located at the toilet for simplified installation.

Superior Design Features:

The Sea Era incorporates unique design elements that set it apart from competing marine toilets. The intake water and discharge water are separated by the full length of the motor, ensuring zero possibility of cross-contamination. Unlike competitive units where intake and discharge are only separated by a seal, this design prevents wastewater from backing into the bowl if a seal fails. The full-size joker valve provides superior performance and substantially reduces clogging probability.

Flexible Installation:

The marine-size white porcelain bowl can be rotated in 90-degree increments, making it ideal for oddly shaped spaces or retrofit installations where floor space is limited. The innovative discharge fitting accepts either 1-1/2" (38mm) or 1" (25mm) discharge lines without adapters. Includes both straight and 90-degree discharge options. Water can be routed from either side of the inlet pump using the included interchangeable 3/4" (19mm) hose barb fittings (two straight and one 90-degree).

Performance Specifications:

• 12V DC operation at 18 amps
• Integral self-priming intake pump lifts water from 4 feet (1.22m) below toilet
• Discharge pump handles vented loops up to 5 feet (1.52m) high
• Flow rate: 3 gallons per minute
• Pump can run dry without damage
• Stainless steel macerating blade
• Low water usage and quiet operation
• Includes heavy-duty marine push-button switch

Dimensions:

• Bowl depth: 16-3/4" (42.6cm)
• Bowl width: 13" (33cm)
• Base depth: 13-3/8" (34cm)
• Base width: 6-5/8" (16.8cm)
• Total height: 14-1/2" (36.8cm)

Each unit is hand-assembled, individually tested, and backed by Raritan's one-year limited warranty and legendary technical support team. Compatible with on-board treatment systems such as Lectra/San and holding tanks. Ideal for mounting above or below waterline.
