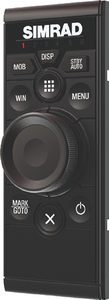

Simrad 000-12364-001 OP50 Wired Remote Controller Portrait Mount

The Simrad OP50 Wired Remote Controller is engineered for portrait-orientation mounting in helm chair arms, between monitors, or other vertical installations. This intuitive remote provides seamless keypad and rotary-dial command of up to six NSS evo2 or NSO evo2 multifunction displays through a single NMEA 2000® network connection.

Key Features:

• Control up to six NSS evo2 or NSO evo2 multifunction displays simultaneously
• High-quality aluminum control dial with knurled edge and built-in cursor functions
• Portrait orientation with narrow 60mm width ideal for helm chair arm mounting
• Dual mounting options: dash mount with low 8mm profile or zero-profile flush mount with optional bracket
• Integrated high-decibel speaker for critical alarm notifications
• Dedicated display selector button with LED indicators for quick switching between displays
• Single NMEA 2000® connection provides both power and control
• IPX6 waterproof rating from front when dash mounted with gasket

Technical Specifications:

• Dimensions: 60mm W × 150mm H × 44.5mm D (2.36" × 5.9" × 1.75")
• Weight: 0.3 kg (0.66 lbs)
• Operating temperature: -15°C to +55°C (5°F to 131°F)
• Power consumption: Less than 100mA @ 13.5V
• NMEA 2000 Load Equivalency: 2 network loads (100mA)
• Waterproof rating: IPX6 front (dash mounted), IPX2 rear
• NMEA 2000 Certified

The OP50's narrow vertical design and strategically positioned cable make it perfect for installations in tight spaces alongside Simrad MO-series touchscreen monitors or in pilothouse environments. The precision aluminum dial ensures reliable operation in all marine conditions, while the optimized keypad layout provides efficient control of NSS evo2 and NSO evo2 display functions.
