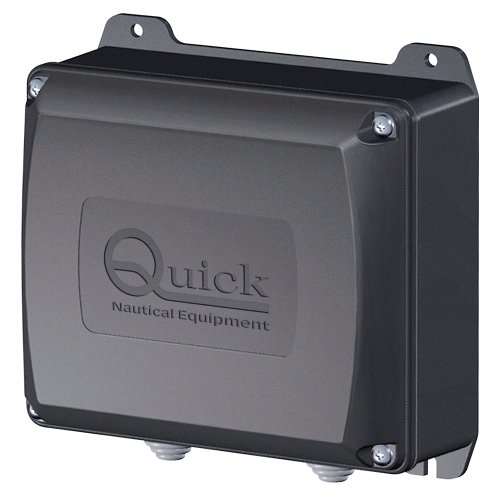

Quick FRRRCR902000A00 Radio Remote Control Receiver RRC R902 2-Relay 913MHz

The Quick RRC R902 is a professional-grade radio remote control receiver operating at 913MHz with FSK modulation, designed for marine and mobile applications requiring reliable wireless control. This versatile receiver features two independent relay outputs and a wide operating voltage range, making it suitable for controlling windlasses, thrusters, lighting systems, and other onboard equipment.

Key Features:

• Two relay outputs with 15A current carrying capacity each
• Wide voltage range: 10.5-31 VDC operation for 12V and 24V systems
• FSK modulation at 913MHz carrier frequency for reliable signal transmission
• Memory capacity for up to 50 transmitters
• Microcontroller-operated functions with programmable digital filter
• LED and seven-segment display for system status, error indication, and diagnostics
• Translation mode enables multiple receivers to respond to a single transmitter
• Low standby power consumption at only 25mA
• Reverse polarity protection and low battery protection
• Operating temperature range: -15°C to +70°C (+5°F to +158°F)

The RRC R902 receiver's robust design and comprehensive protection features make it ideal for demanding marine environments. The ability to store multiple transmitters and use translation mode provides flexibility for complex installations where multiple control points or redundant systems are required.
