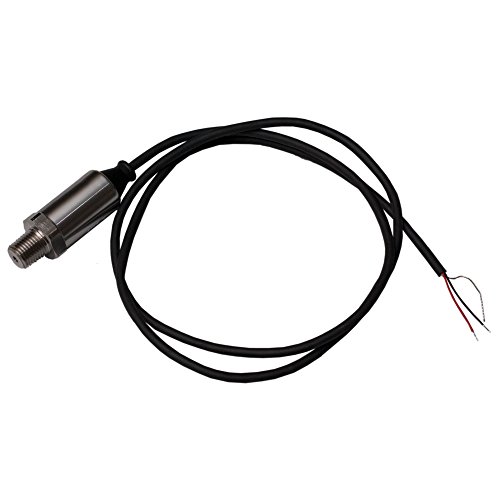

Maretron PT-0-3PSI-01 Pressure Transducer 0-3 PSI Gauge Type

The Maretron PT-0-3PSI-01 is a precision gauge-type pressure transducer designed to work with the Maretron FPM100 Fluid Pressure Monitor for integration into NMEA 2000® marine networks. With a measurement range of 0 to 3 PSI (0.21 bar), this transducer is ideal for monitoring low-pressure applications including water pressures, tank levels, oil pressures, and system vacuum readings on boats and vessels.

Key Features:

• Measurement range: 0 to 3 PSI (0.21 bar)
• ±2% full scale accuracy for reliable readings
• 304L stainless steel construction for marine durability
• ¼" NPT male threaded fitting for standard installations
• Gauge-type transducer with atmospheric reference vent tube
• Operating temperature range: -40°C to 105°C
• Two-wire connection (red positive, white negative) to FPM100 channels
• Compatible with Maretron N2KView® vessel monitoring system

This low-range pressure transducer is particularly well-suited for tank level monitoring applications, where it can be mounted at the bottom of a tank to measure fluid depth. For maximum accuracy in tank level measurement, always use the transducer with the smallest range sufficient for your application. The PT-0-3PSI-01 can measure tank depths and provides precise monitoring for extremely deep or irregularly shaped tanks that cannot be sensed using traditional float-based technologies.

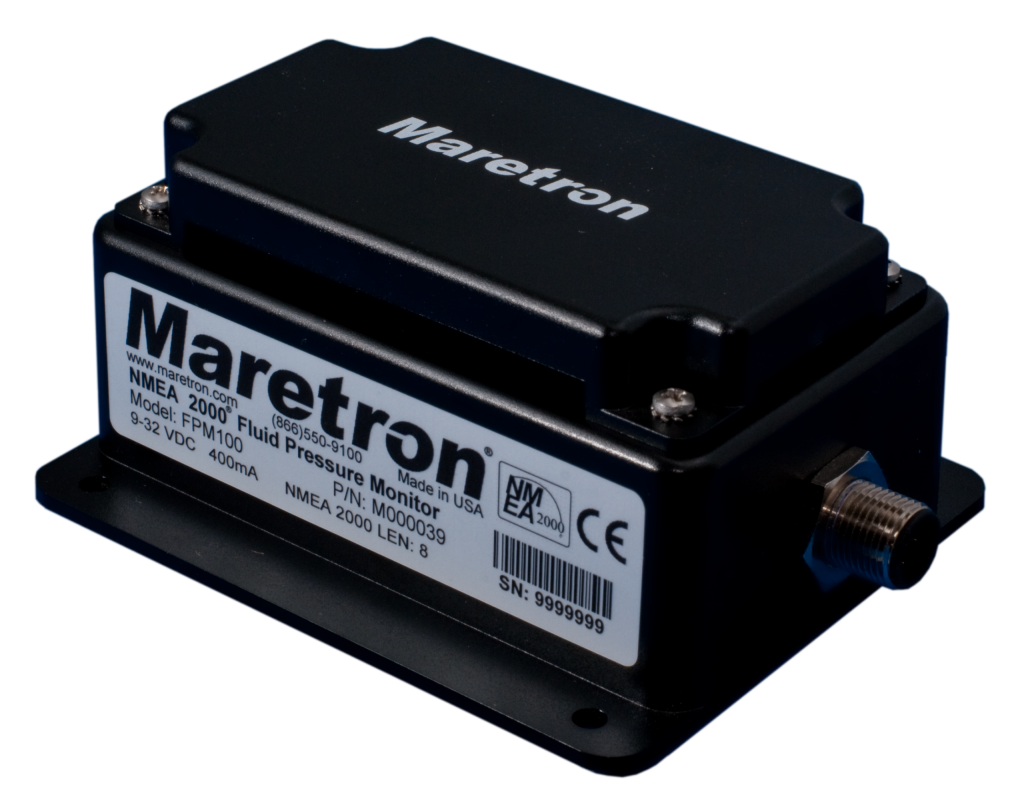

Important: Maretron pressure transducers are not approved for use with gasoline. Requires Maretron FPM100 Fluid Pressure Monitor (sold separately) to connect to NMEA 2000® network. Optional pressure snubber (PT-SNUB-01) available for dampening pressure spikes in certain applications.
