Maretron DG1-100C NMEA 2000 Mid Bulk Cable 100m Spool Gray

The Maretron DG1-100C is a 100-meter spool of NMEA 2000 certified mid bulk cable designed for marine networking applications. This gray jacketed cable features triple-layer shielding and a robust construction that meets the demanding requirements of marine environments.

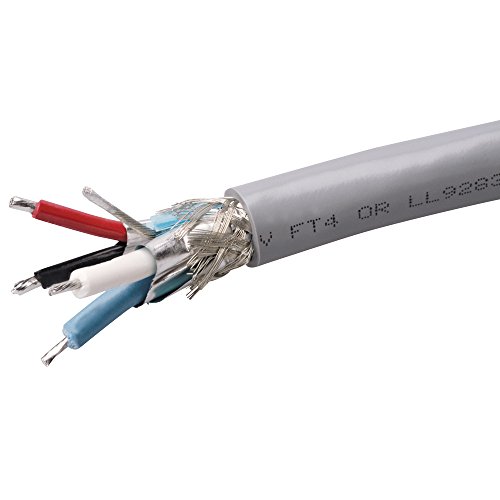

Cable Construction:

• 2x16 AWG (1.29mm) power conductors with red/black color coding
• 2x20 AWG (0.81mm) data conductors with white/blue color coding
• 20 AWG (0.81mm) drain wire for enhanced grounding
• Triple shielding: Overall foil shield, power pair foil shield, and data pair foil shield
• PE insulation on data wires, PVC insulation on power wires
• Sunlight-resistant gray PVC outer jacket

Electrical Specifications:

• Power pair resistance: 4.1 Ohms per 1000 ft maximum
• Maximum amperage: 14 Amps
• Characteristic impedance: 120 Ohms ±10%
• Capacitance: 10.75 pF/ft

Certifications and Approvals:

• NMEA 2000 Approved for guaranteed network compatibility
• UL Listed: PLTC 75°C Sunlight Resistant (E90625), AWM 80°C 300V
• CSA Certified: CMX-OUTDOOR-CMG (LL54185) 75°C, AWM I/II A/B 80°C 300V FT4
• IEC-61162-3 compliant

This bulk cable is ideal for custom NMEA 2000 network installations on boats, allowing installers to cut and terminate cables to exact lengths needed. The mid-size conductor gauge provides an excellent balance between current carrying capacity and flexibility for routing through tight spaces in marine applications.
