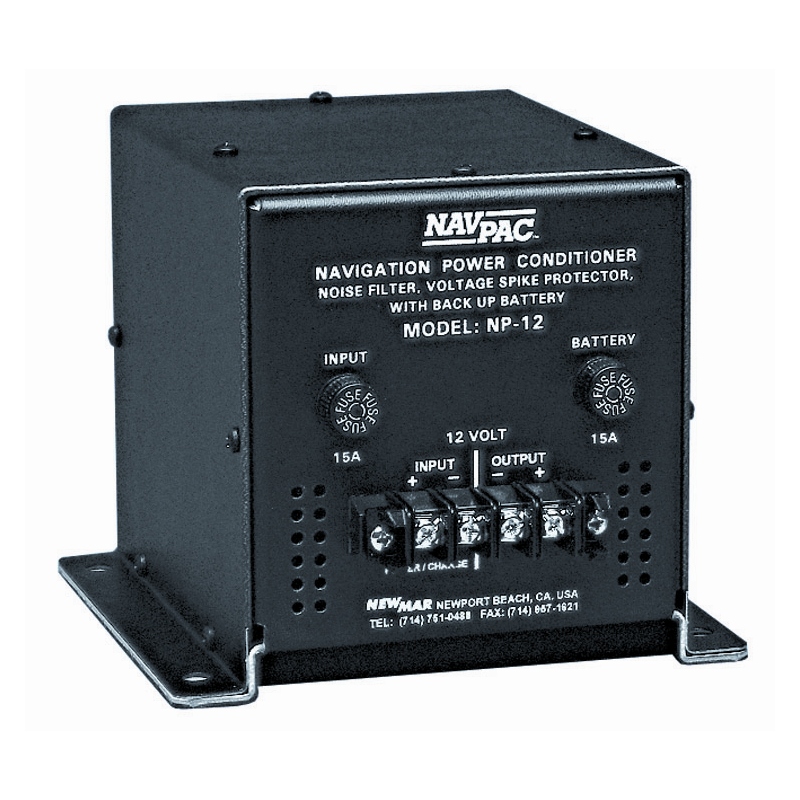

NewMar NP-12 Nav-Pac 12V DC Power Conditioner 20A

The NewMar NP-12 Nav-Pac is a marine-grade DC power conditioner designed to protect sensitive navigation and communication electronics from voltage fluctuations, electrical interference, and power interruptions. This essential device ensures your GPS, VHF radios, chartplotters, and other microprocessor-controlled marine electronics receive clean, stable power even during engine starts and high-load conditions.

Key Features:

• Prevents voltage drop-out during engine cranking and high intermittent loads like bow thrusters
• Absorbs and suppresses dangerous voltage spikes from alternators and motors
• Filters electrical interference and noise across audio through 200 MHz frequencies
• Integrated sealed rechargeable 5.0 Ah battery provides backup power for up to 15 minutes
• Transient spike protection handles up to 100 Joules and 4,000 amps max
• Low-voltage disconnect circuit protects internal battery from total discharge
• Compatible with optional remote monitoring panel

Technical Specifications:

• Input Voltage: 13.8-14.8 VDC
• Output: 14.9 VDC at 20 amps maximum continuous
• Battery Backup Duration: 20A for 1 min, 18A for 2 min, 12A for 8 min, 8A for 15 min
• Internal Battery: Sealed rechargeable, 5.0 Ah capacity, 5-7 year typical life, user-replaceable
• Dimensions: 5.25" L x 6.2" W x 7.4" H
• Weight: 5.9 lbs

The NP-12 Nav-Pac is essential for protecting expensive marine electronics from the harsh electrical environment found aboard vessels. Its combination of power conditioning, surge protection, and battery backup ensures your critical navigation and safety equipment remains operational when you need it most.
