Easily replace your waterproof charging/trolling motor plugs and receptacles.

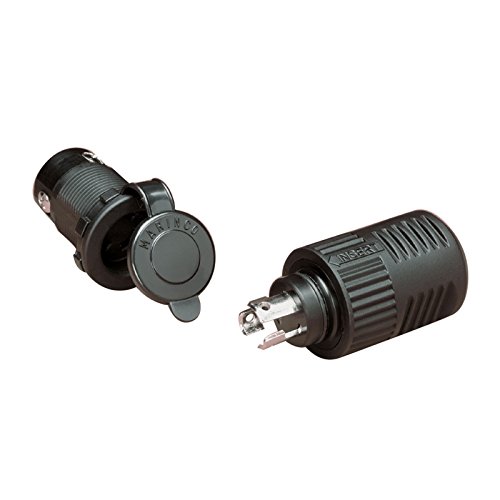

Marinco's ConnectPro 3-Wire Trolling Motor Plug and Receptacle system provides an easy way to make trolling motor DC connections. The superior electric current carrying capacity of the ConnectPro system eliminates problems that rob motors of power and reduce battery life. The ConnectPro system also features a locking plug and receptacle with a spring clamping connection that provides a secure electrical contact.
NOTE: A fuse and fuse carrier (both sold separately) are required for installation.

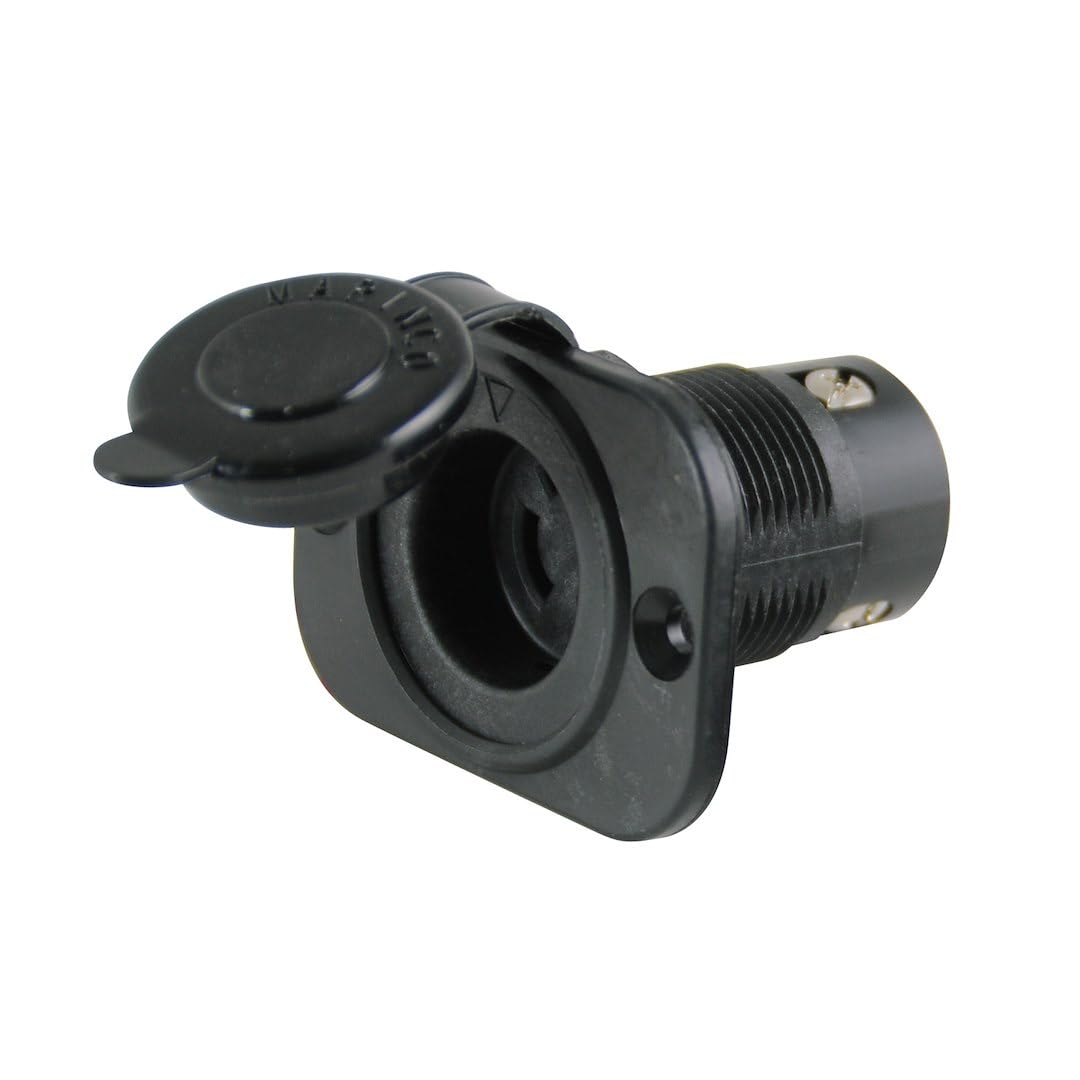

Receptacle Features
- Universal design for 2- or 3-wire configuration of 12V, 24V, 12/24V, 24/36V or 36V systems
- Watertight sealing cap
- Corrosion resistant, plated brass electrical components
- Perma-Lock™ screw terminals will not loosen under extreme hull vibration
- Drain holes keep water away from electrical components
- Standard 1 1/8" diameter mounting hole
- Easy to install
- Supplied mounting plate for front panel installation
- Locking ring for rear access installation
- Accepts 10 and 8 gauge wire
- Easily replaces other trolling motor receptacles
- Maximum rating of 40 amps
Plug Features
- O-ring seal for waterproof connections
- Weather resistant plug cover
- Corrosion resistant, plated brass electrical components
- Accepts 16 to 8 gauge wire
- Ergonomic contoured grip for easy hook-up and ground blade alignment
- Maximum rating of 40 amps
