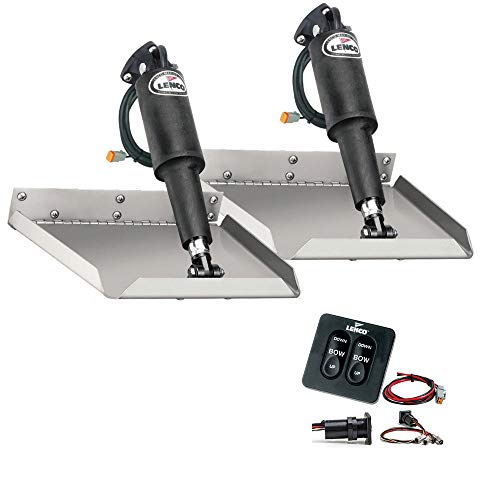

The Lenco TT9X12E Edge Mount Trim Tab Kit transforms your boating experience with improved ride quality, increased speed, and enhanced safety. Designed for boats 16' to 25' in length, this complete system features Lenco's advanced ball screw actuators that deliver three times more power and instant response compared to traditional hydraulic systems.
Edge Mount Design Advantages:
Edge Mount actuators install at the trailing edge of the transom plane, requiring only 13.5" of minimum transom height—4" less than standard mount systems. This makes them ideal for boats with limited transom space while maintaining full trim tab performance.
Key Features:
- 9" x 12" stainless steel trim tab blades with 2" hinge height
- Fully submersible electric actuators with waterproof Deutsch connections
- Ball screw design for superior reliability and instant response
- Plug-and-play installation with 20' extension harnesses included
- 12-gauge stainless steel blades with smooth finish for fuel efficiency
- CE certified for quality and safety compliance
Complete Kit Includes:
- 2 stainless steel 9" x 12" trim tab blades
- 2 actuators with 6' leads and Deutsch plugs
- 2 upper mounting brackets with gland seals
- 2 lower mounting brackets
- 2 20-foot actuator extension wiring harnesses
- Standard tactile switch control system with keypad, control box, and 36" power pigtail
- Complete stainless steel mounting hardware
- Owner's and installation manual
Standard Tactile Switch System:
The included waterproof tactile switch features maintenance-free operation with over-molded connectors that eliminate water intrusion. The 12-volt system includes a built-in retractor for single actuator operation and provides intuitive control of your trim tabs from the helm.
Specifications:
- Suggested boat length: 16' to 25'
- Trim tab dimensions: 9" x 12" per blade
- Hinge height: 2"
- Minimum transom height required: 13.5"
- Blade material: 12-gauge stainless steel
- Voltage: 12-volt DC system
