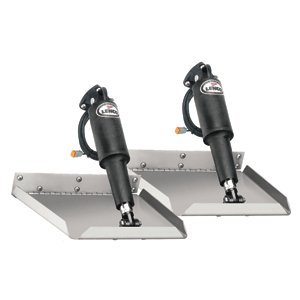

Lenco 15013-101 9x9 Edge Mount Trim Tab Kit without Switch 12V

The Lenco 15013-101 Edge Mount Trim Tab Kit delivers smoother rides, improved fuel efficiency, and enhanced boat control for vessels 14 to 18 feet. This 9" x 9" trim tab system features Lenco's advanced ball screw actuator design, providing three times more power and instant response compared to traditional hydraulic systems. The edge mount configuration requires only 13.5" of transom height, 4" less than standard mount systems, making it ideal for boats with limited transom space.

Key Features:

• Fast-response 12V electric actuators with instant adjustment
• Fully submersible actuators with waterproof Deutsch plug connections
• 12-gauge stainless steel blades with smooth finish for durability
• Ball screw design for superior reliability and power
• Plug-and-play installation with 20' extension harnesses included
• CE certified for quality and safety compliance

Complete Kit Includes:

• Two 9" x 9" stainless steel trim tab blades (12-gauge)
• Two #15054-001 actuators with 6' leads and Deutsch connectors
• Two #30133-103 20' actuator extension wiring harnesses
• Two #15085-001 upper mounting brackets with gland seals
• Two #50014-001 lower mounting brackets
• Complete stainless steel mounting hardware
• Owner's and installation manual

Specifications:

• Recommended Boat Length: 14' to 18'
• Tab Dimensions: 9" L x 9" W
• Hinge Height: 2"
• Minimum Transom Height Required: 13.5"
• Voltage: 12V DC
• Material: 12-gauge stainless steel
• Note: Control switch sold separately

This edge mount system is compatible with any boat type and provides the fuel-efficient performance Lenco is known for, helping you achieve optimal running angle for maximum speed and efficiency.
