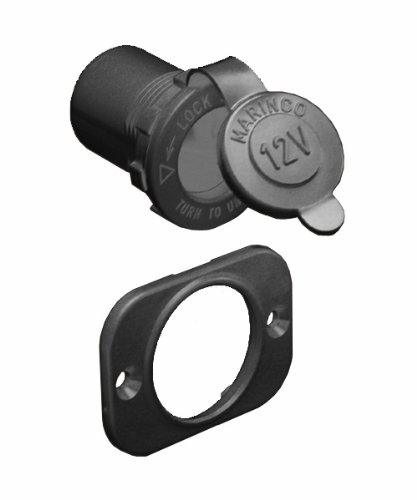

Marinco 12VRC 12V Deluxe Receptacle with Watertight Cap

The Marinco 12VRC is a deluxe 12-volt receptacle designed to provide reliable power connections in demanding marine environments. Built to withstand constant motion and exposure to wet conditions, this SeaLink® receptacle features corrosion-resistant materials and large contact surfaces that ensure solid electrical contact and minimal voltage drop.

The receptacle includes a watertight plastic cap seal that protects against spray and moisture when not in use. A sealing ring around the plug shaft keeps water out while firmly seating the plug in the outlet. The ground contacts engage with the receptacle to lock the plug in place, preventing accidental disconnection—the plug cannot be removed without twisting it 90 degrees.

Key Features:

• Versatile mounting options: includes mounting plate for front panel installation or locking ring for rear access installation
• Ground contacts act as a safety lock to prevent plug removal without twisting
• Corrosion-resistant construction with high-temperature fiber-reinforced nylon body
• Nickel-plated copper alloy contacts for superior conductivity and durability
• Compatible with standard 12V plugs
• Watertight cap seal protects connections from spray and moisture

Specifications:

• Voltage: 12V DC
• Current Rating: 20A maximum (receptacle), 15A recommended
• Conductors: 2-pole
• Terminals: NEMA 0.250" quick connect tabs
• Body Material: High-temperature fiber-reinforced nylon
• Contact Material: Nickel-plated copper alloy

Ideal for powering trolling motors, fish finders, electronics, and other 12-volt accessories on boats, RVs, and marine applications.
