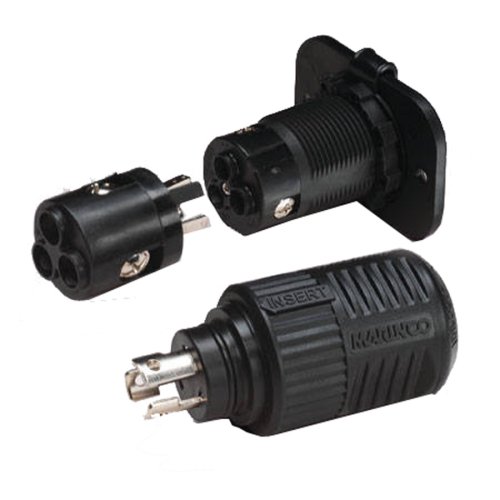

Marinco 12VCP6 ConnectPro Trolling Motor Receptacle Plug with 6-Gauge Adapter

The Marinco 12VCP6 ConnectPro system provides a complete charging and trolling motor connection solution with a locking plug, receptacle, and 6-gauge wire adapter. Designed for marine applications, this system features a secure spring clamping connection that ensures reliable electrical contact even in harsh conditions.

The receptacle offers universal design flexibility for 2-wire or 3-wire configurations, supporting 12V, 24V, 12V/24V, 24V/36V, or 36V systems. The standard 1-1/8 inch diameter mounting hole makes installation straightforward, and a mounting plate is included for easy panel mounting.

Key Features:

• Locking plug and receptacle system ensures secure, vibration-resistant connections
• Spring clamping terminals provide consistent electrical contact
• Watertight sealing cap protects receptacle when not in use
• Corrosion-resistant plated brass electrical components for long service life
• Drain holes in receptacle channel water away from electrical components
• O-ring seal on plug provides waterproof connection
• Weather-resistant plug cover for added protection
• Receptacle accepts up to 8-gauge wire; plug accepts 16 to 8-gauge wire
• Universal design supports multiple voltage configurations without rewiring

This complete kit includes the panel-mount receptacle, mating plug, and 6-gauge wire adapter, providing everything needed for a professional trolling motor or onboard charger installation. Ideal for bass boats, fishing boats, and other marine vessels requiring reliable 12V-36V electrical connections.
