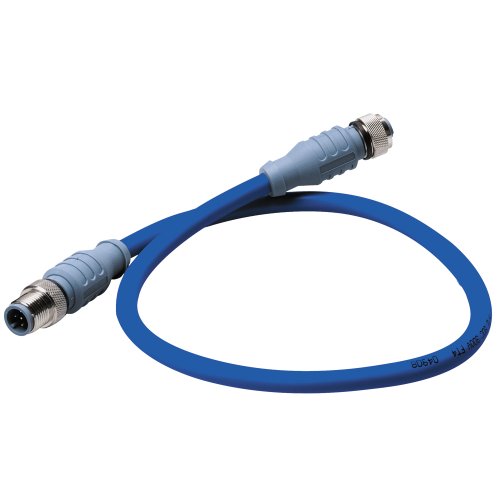

Maretron DM-DB1-DF-02.0 NMEA 2000 Mid Double-Ended Cordset 2M Blue

The Maretron DM-DB1-DF-02.0 is a 2-meter NMEA 2000 certified mid double-ended cordset featuring male to female connectors with blue cable construction. This marine-grade network cable provides reliable data and power connectivity for NMEA 2000 backbone installations on boats and vessels.

Key Features:

• NMEA 2000 approved cordset for marine network installations
• 2-meter length with male to female terminations for mid-cable connections
• IEC IP68 and NEMA 1, 3, 4, 6P rated for complete water and dust protection
• Triple-layer foil shielding on overall cable, power pair, and data pair for superior EMI protection
• Rated for 4.0 amps at 250V with wide temperature range from -40°F to 176°F
• Brass contacts with gold plating and nickel-plated brass coupling nuts for corrosion resistance
• UL and CSA approved sunlight-resistant cable construction
• Thermoplastic PUR molded bodies in blue-gray for durability

Technical Specifications:

• Connector outside diameter: 0.59 inches
• Cable conductors: 2x16 AWG power pair, 2x20 AWG data pair, plus 20 AWG drain wire
• Gray PVC outer jacket with PE data pair insulation and PVC power pair insulation
• Complies with IEC 61162-3 standard for maritime navigation equipment

This cordset is ideal for extending or connecting NMEA 2000 network segments in marine electronics installations, providing the rugged construction and environmental protection required for harsh saltwater environments.
