This NMEA 2000 sensor monitors fuel level in your gas tank using ultrasonic technology.

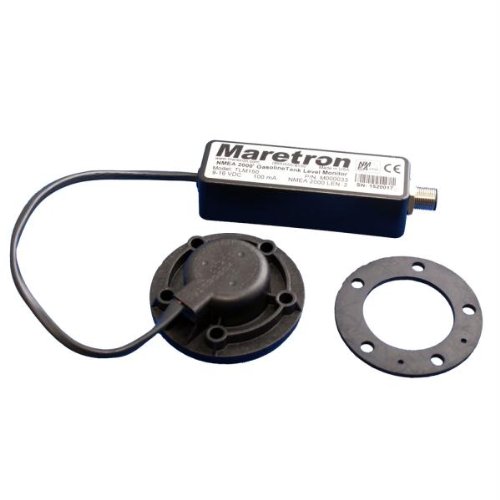

The TLM150 is used to sense levels of gasoline tanks using ultrasonic technology and transmit the gasoline levels over the NMEA 2000 network. This allows you to observe gasoline tank levels anywhere on the vessel where there is an NMEA 2000 compatible display such as the Maretron DSM250.
The TLM150 is capable of sensing gasoline tanks up to 24" (0.61m) in depth. It must be used only for tanks containing gasoline.. Unlike most tank senders that only work with rectangular tanks, the TLM150 can be calibrated for irregular tank shapes so you know the true level of your tanks.
The TLM150 can be mounted on tanks with a SAE J1810 5-hole mounting pattern, or to tanks using 1.5" NPT or 1.25" BSP threaded openings via available adapters. The TLM150 has an optional focus tube to allow use on boats with planing hulls when the vessel spends a significant amount of time with the bow pitched up.
The Maretron TLM150 is designed to operate within the harsh demands of the marine environment. However, no piece of marine electronic equipment can function properly unless installed, calibrated, and maintained in the correct manner. Please read carefully and follow these instructions for installation, calibration, and usage of the Maretron TLM150 in order to ensure optimal performance.
The TLM150 is ONLY intended for use in tanks containing gasoline. Do not use the TLM150 in tanks containing diesel fuel, water, oil, or other liquids. Use in tanks containing other liquids will result in inaccurate readings.
Key Features
- NMEA 2000 interface for simple networking
- Integrated ultrasonic level sensor
- Can be used in tanks up to 24" deep
- SAE J1810 5-hole, 1.5" NPT, or 1.25" BSP Mounting
- Accommodates irregularly shaped tanks with 16 point calibration
- Tank Type: fuel (gasoline only)
- Programmable tank number(s) Up to 16 per tank type
- Programmable tank capacity
