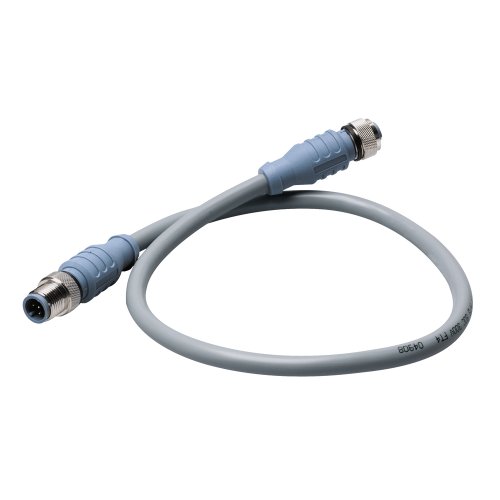

Maretron CM-CG1-CF-08.0 Micro Double-Ended Cordset M to F 8 Meter Gray NMEA 2000

The Maretron CM-CG1-CF-08.0 is an 8-meter (26.2-foot) NMEA 2000 certified micro double-ended cordset designed for reliable marine network connections. This gray cable features male-to-female terminations, allowing you to extend your NMEA 2000 backbone or connect devices in your boat's network system.

Key Features:

• NMEA 2000 approved for certified compatibility with marine electronics
• Micro connector design with 0.59-inch outside diameter for compact installations
• Triple-level shielding (overall foil, power pair foil, data pair foil) for superior signal integrity
• IEC IP68 and NEMA 1/3/4/6P rated for complete water and dust protection
• Temperature rated from -40°F to 176°F (-40°C to 80°C) for extreme marine environments
• 4-conductor design with 22 AWG wire plus drain wire for optimal data and power transmission
• Gold-plated brass contacts and nickel-plated brass coupling nut resist corrosion
• Sunlight-resistant PVC outer jacket in gray color
• UL and CSA certified cable construction

Electrical Specifications:

• Current rating: 4.0 Amps
• Voltage rating: 250V
• Conductor configuration: 4x22 AWG with 22 AWG drain wire

This cordset is ideal for building or expanding NMEA 2000 networks on sailboats, powerboats, and other marine vessels. The thermoplastic PUR molded connectors in blue-gray provide durability and a secure connection even in harsh saltwater conditions.
