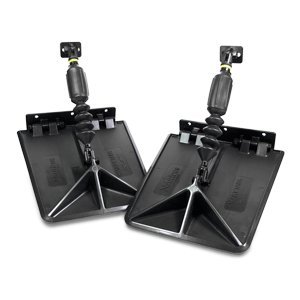

Nauticus SX10512-70 Smart Tab SX Series Composite Trim Tabs 10.5 x 12

The Nauticus SX Series composite trim tabs combine automatic performance adjustment with rust-free durability for boats 21-25 feet with 150-220 HP outboards. Unlike traditional hydraulic or electric trim tabs, the SX system uses nitrogen gas actuators to automatically adjust trim based on boat speed, loading, and sea conditions—no switches or operator input required while underway.

How It Works:

The nitrogen gas actuator holds the trim plate down during acceleration, providing lift at the stern to minimize bow rise and accelerate planing. As boat speed increases and water pressure exceeds the actuator's load rating, the plates automatically move to a horizontal position to eliminate drag. An internal valve system dampens plate movement to provide smooth, stable performance without sudden reactions to minor pressure changes.

Performance Benefits:

• Reduce minimum planing speed by up to 33%
• Faster acceleration and improved time to plane
• Increased top speed potential
• Level, comfortable ride at lower speeds
• Improved fuel economy and handling
• Enhanced stability in turns and while crossing waves
• Eliminates porpoising, sliding, and chine walking

Construction & Features:

Molded composite materials provide complete rust and corrosion resistance in fresh or salt water with zero maintenance required. Integrated tracking ribs improve handling at higher speeds. The system can be tuned during installation to maximize performance for your specific boat.

Installation:

Simple installation requires only a drill with 3/16" bit, Phillips screwdriver, and two wrenches. Most installations can be completed in under an hour with no through-hull drilling required. All mounting hardware, instructions, and templates included.

Specifications:

• Trim plate size: 10.5" x 12"
• Recommended boat length: 21-25 feet
• Recommended horsepower: 150-220 HP
• Material: Composite construction
• Operation: Fully automatic, no electrical or hydraulic components
