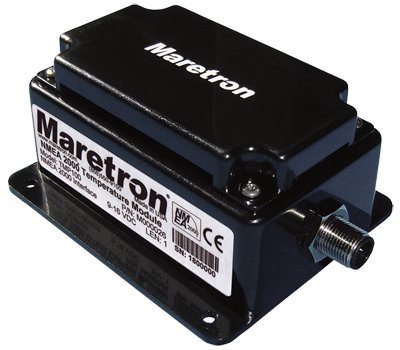

Maretron TMP100-01 Temperature Module 6-Channel NMEA 2000

The Maretron TMP100 Temperature Module provides comprehensive temperature monitoring for marine vessels by measuring up to six temperature probes simultaneously and broadcasting the data over an NMEA 2000® network. This versatile module supports four channels for standard thermistor probes and two channels for high-temperature thermocouple probes, making it ideal for comprehensive onboard temperature management.

Key Features:

• Six independent temperature inputs with NMEA 2000® network integration
• Four channels support thermistor probes (-20°C to 80°C / -4°F to 176°F)
• Two channels support thermocouple probes (0°C to 900°C / 32°F to 1652°F)
• Real-time temperature monitoring and data logging capabilities
• Compatible with Maretron display units and third-party NMEA 2000® devices

Applications:

• Cabin and engine room air temperature monitoring
• Refrigerator and freezer temperature tracking
• Under-bolt temperature measurement for inverters, chargers, pumps, and motors
• Tank temperature monitoring (live well, hot water, holding tanks)
• HVAC air duct temperature measurement
• Exhaust gas temperature (EGT) monitoring for fuel management systems

Optional Temperature Probes:

• Ambient air temperature probe for general monitoring
• Ring terminal probe for direct equipment mounting
• Immersion probe for tanks and plenums
• High-temperature exhaust gas probe for engine monitoring

The TMP100 integrates seamlessly with Maretron's N2KView vessel monitoring software and other NMEA 2000® compatible displays, providing critical temperature data for safety, comfort, and equipment protection. Temperature probes sold separately.
