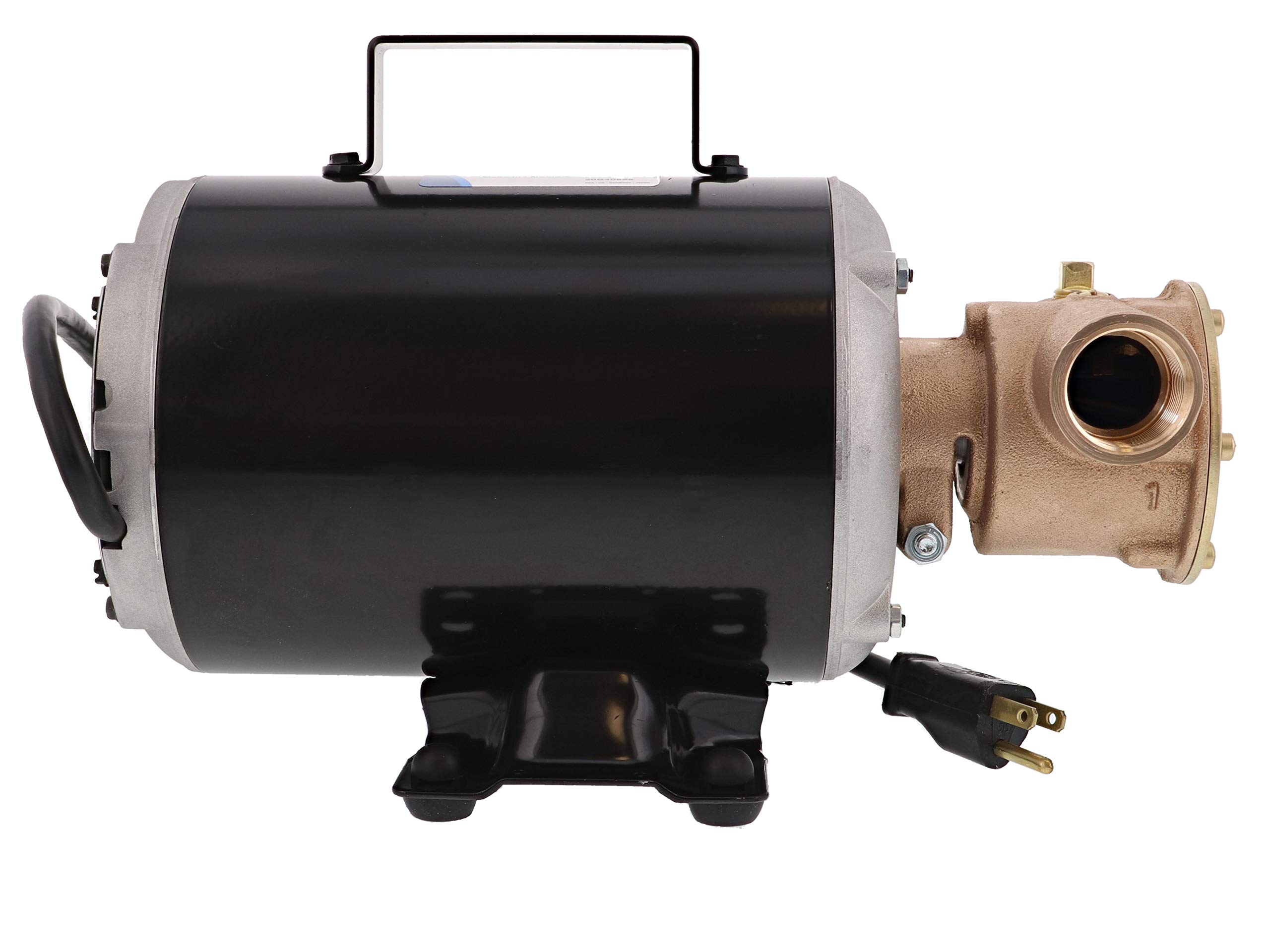

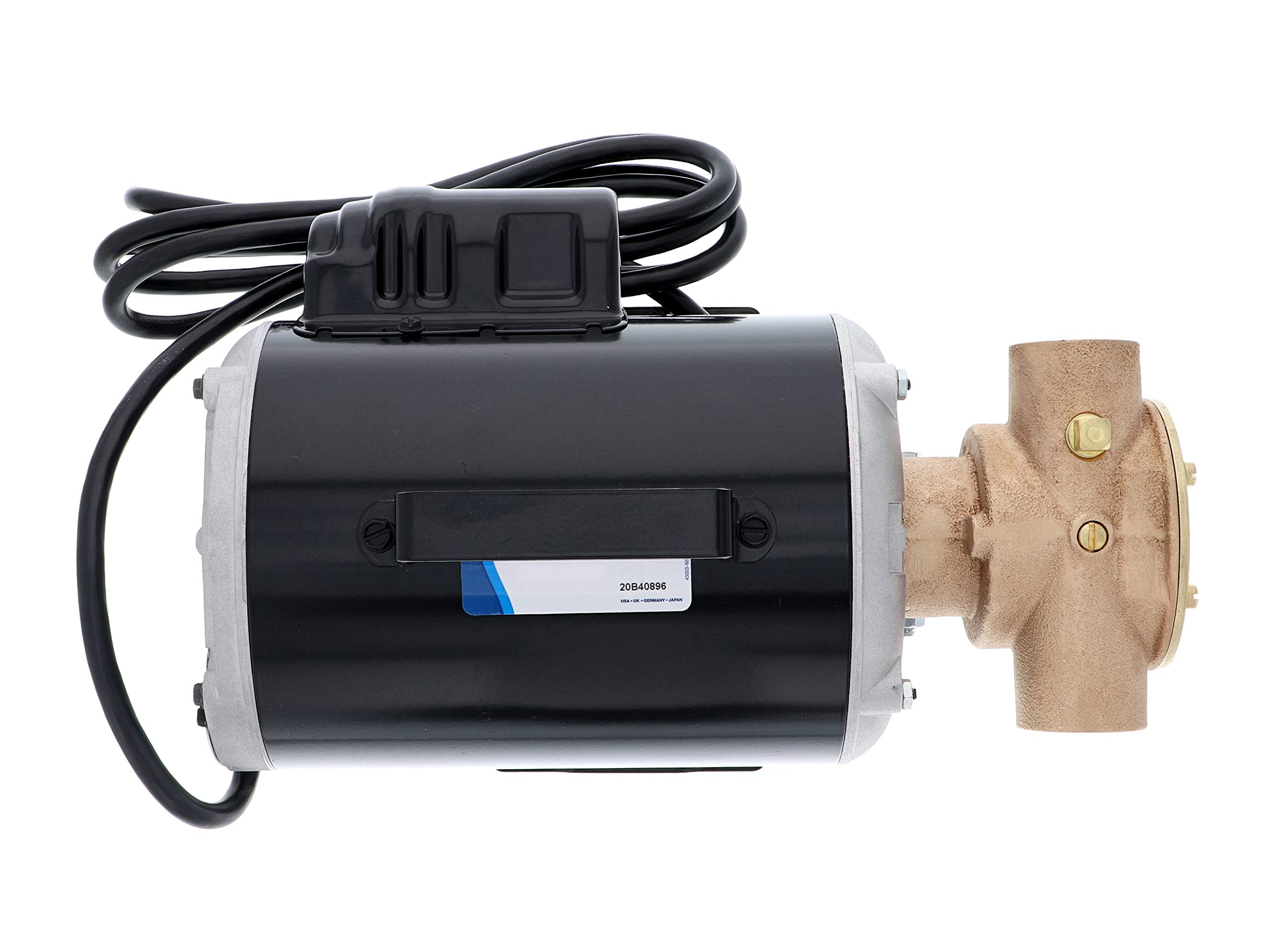

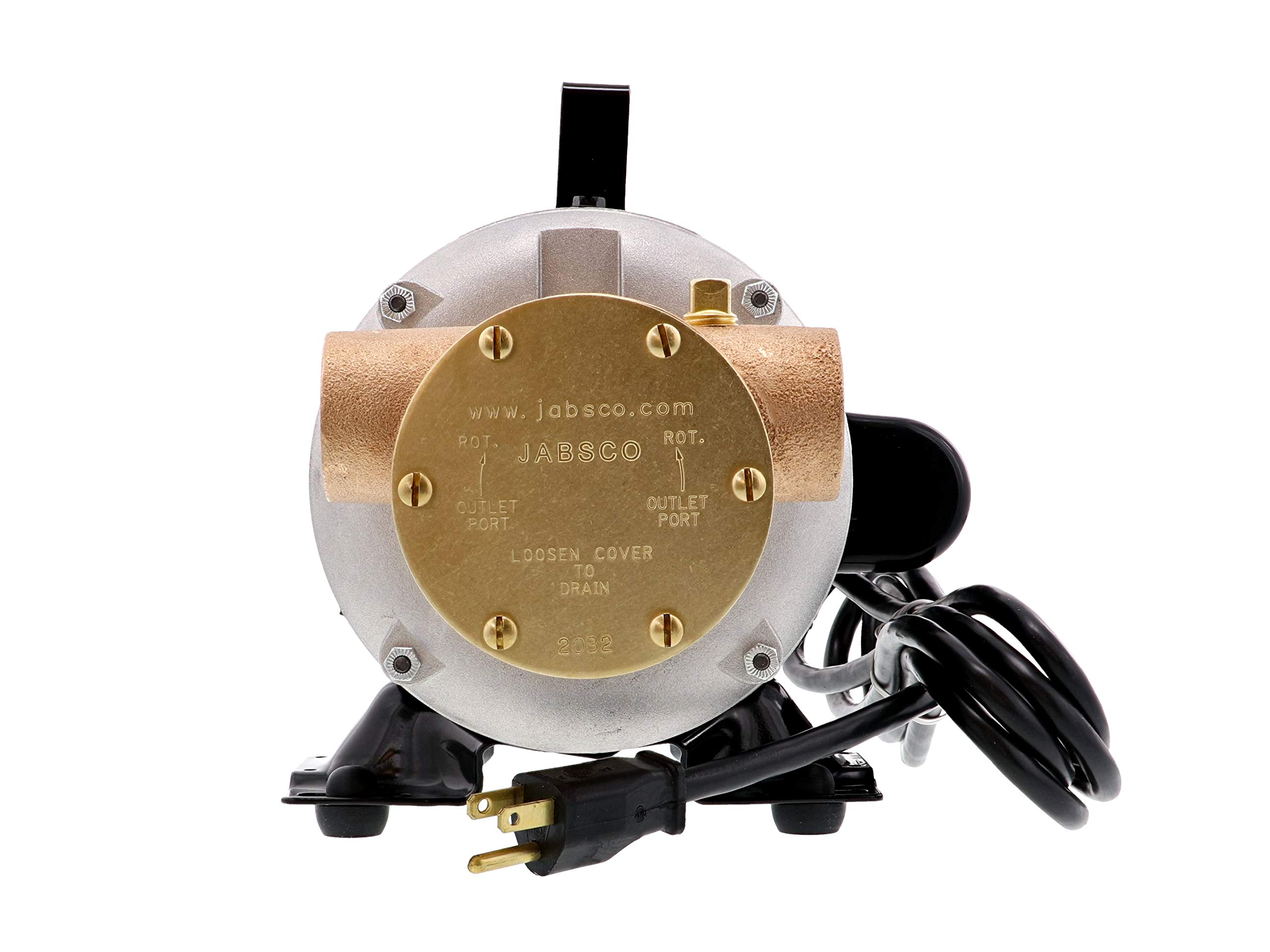

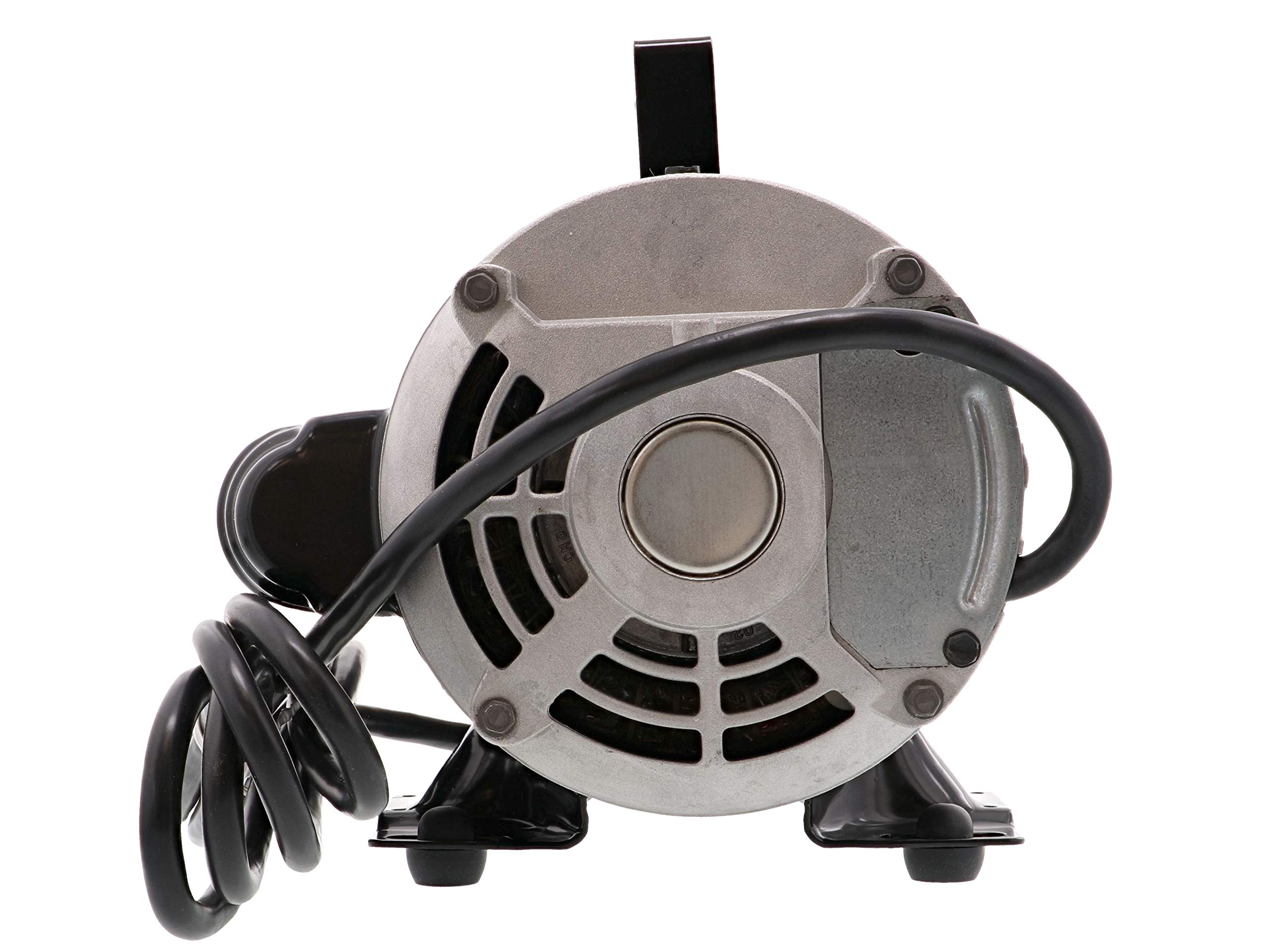

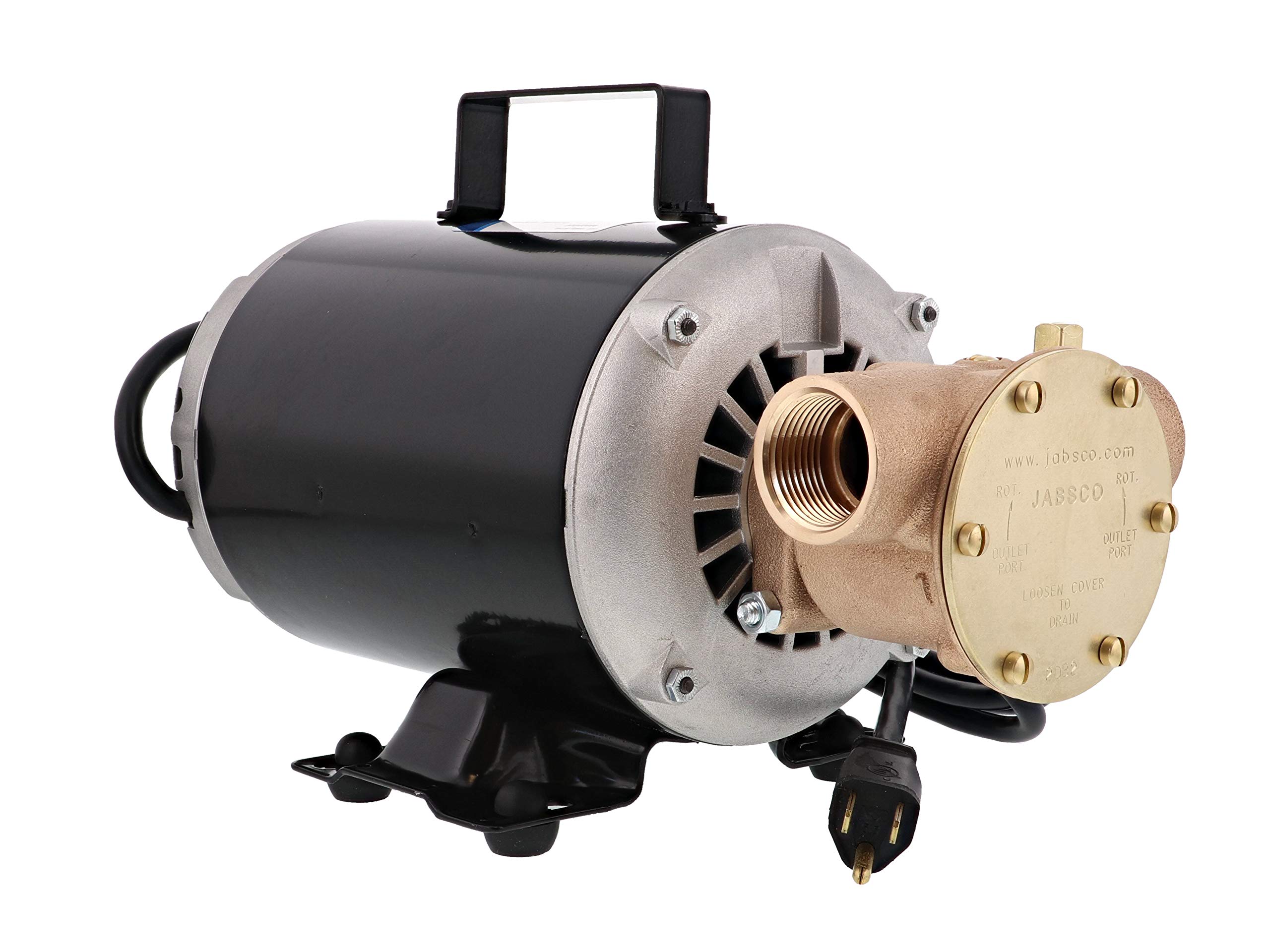

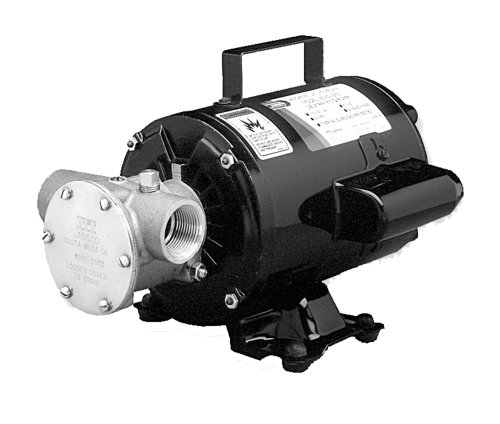

The Jabsco 6050-0003 is a high-capacity, self-priming flexible impeller utility pump designed for demanding marine, industrial, and commercial applications. This versatile pump features bronze construction for durability and corrosion resistance, coupled with a continuous duty 3/4 horsepower motor with thermal overload protection.
Key Features:
- Flow rate of 23 GPM with maximum head of 60 feet
- Self-priming capability up to 7.8 feet dry, up to 22 feet when primed
- Bronze pump head with nitrile impeller for oil resistance
- 316 stainless steel impeller sleeve over steel motor shaft
- 3/4 HP, 1725 RPM open drip proof (ODP) motor
- Dual voltage 115/230 VAC operation (factory wired for 115V)
- 1-inch NPT female ports (intake and discharge)
- Replaceable wear plate and lip type shaft seal
- 8-foot power cord with standard grounded plug included
- Will not air lock - continues operating even when air passes through
Performance Specifications:
- Maximum discharge pressure: 20 PSI for continuous operation
- Handles liquids from 50°F to 180°F (10°C to 83°C)
- Capable of handling viscous liquids and small suspended particles like sand and silt
- Can be mounted in any position without loss of efficiency
Common Applications: Marine bait tank circulation, wash down systems, utility dock pumps, oil transfer, industrial filling systems, coolant circulation, sump pumping, water transfer, basement draining, equipment washdown, water softener recharging, and general shop utility use.
Important: Do not run dry - lack of liquid will damage the impeller. Not suitable for pumping gasoline, solvents, thinners, or highly concentrated organic acids. For continuous pumping applications requiring self-priming capability and debris tolerance.
