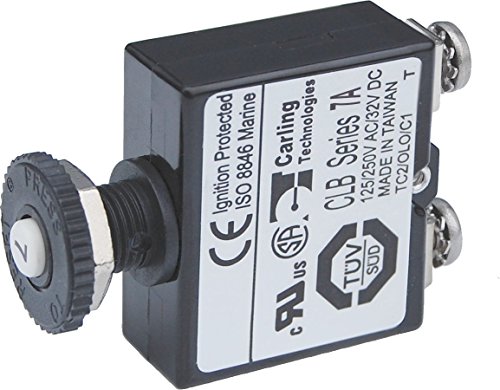

Blue Sea Systems 2131 7A Push Button Circuit Breaker

The Blue Sea Systems 2131 is a compact 7-amp thermal circuit breaker designed for reliable DC electrical protection on boats, RVs, and marine applications. This push-button reset circuit breaker features screw terminal connections and is ignition protected for safe installation on gasoline-powered vessels.

Key Features:

• 7-amp thermal trip protection with manual push-button reset operation
• Trip-free design prevents breaker from being held "ON" during fault conditions
• Compact size enables high-density circuit protection configurations
• Ignition protected for safe use on gasoline-powered boats
• Compatible with Blue Sea Systems WeatherDeck panels and distribution systems
• Optional waterproof boot available for wet environment protection

Technical Specifications:

• Amperage Rating: 7A
• Maximum Voltage: 32V DC
• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
• Terminal Type: #8 screw terminals (6 in-lb torque)
• Mounting: Panel mount 3/8-27 UNS thread
• Operating Temperature Range: -10°C to 60°C
• Weight: 0.09 lbs (0.04 kg)

Ideal for branch circuit protection or 24-hour circuit applications, this breaker provides dependable overcurrent protection in a compact, marine-grade package.
