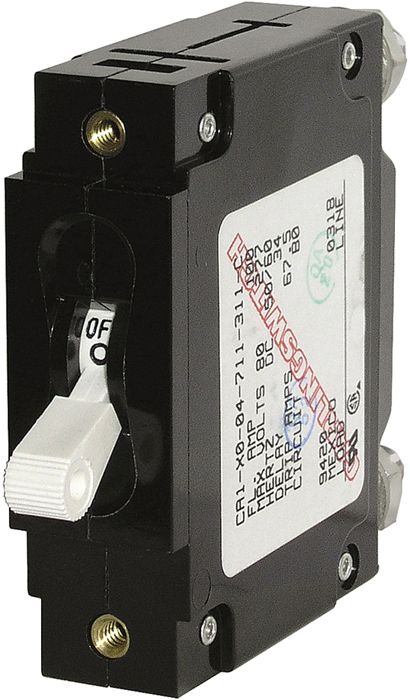

Industry standard circuit protection with stud terminals
It is inevitable that breakers will have to be changed to meet the demands of existing or changing electrical loads. Blue Sea Systems makes it simple. The C-Series circuit breakers combine circuit protection and switching in a toggle switch designed to fit Blue Sea Systems panels. These breakers are capable of handling short start-up current surges found in electric motors and other appliances without tripping. For added safety, a Trip-Free feature prevents the toggle from being held in the ON position when a fault is detected. These single pole breakers with stud terminals are ideal for branch circuits that require between 5A-100A AC or DC protection.
Key Features
- Compatible with both AC and DC circuits
- Combine switching and circuit protection into single toggle switch
- Industry standard and compatible with Blue Sea Systems electrical panels for simple change
- Trip-Free feature means switch cannot be held in ON position when a fault is detected
- Magnetic-hydraulic delay trip mechanism recognizes surges caused by start-up currents and will not trip
- Improved ability to interrupt higher current without failure
- Lifetime warranty
Specifications
- Amperage: 5A-100A AC, 5A-300A DC
- Number of Poles: 1
- Maximum Voltage: 240V AC, 80V DC
- Circuit Breaker Type; Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A @ 250V AC, 5000A @ 125V AC, 10000A @ 80V DC
- Mounting Screw: #6-32 Stainless steel
- Terminal Stud: 1/4-20 Tin-Plated Brass
