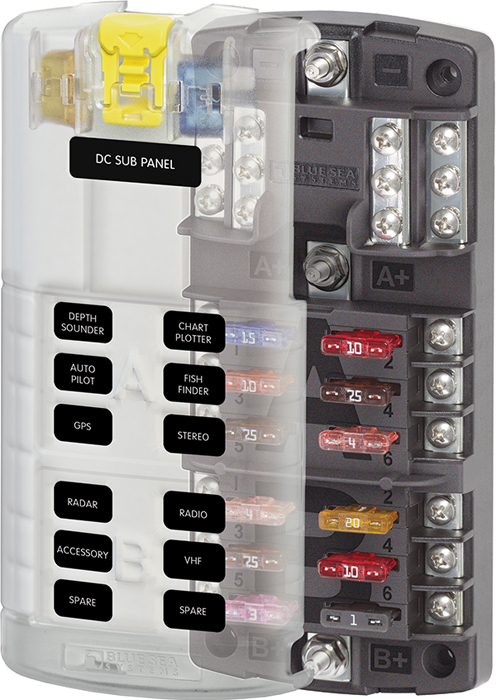

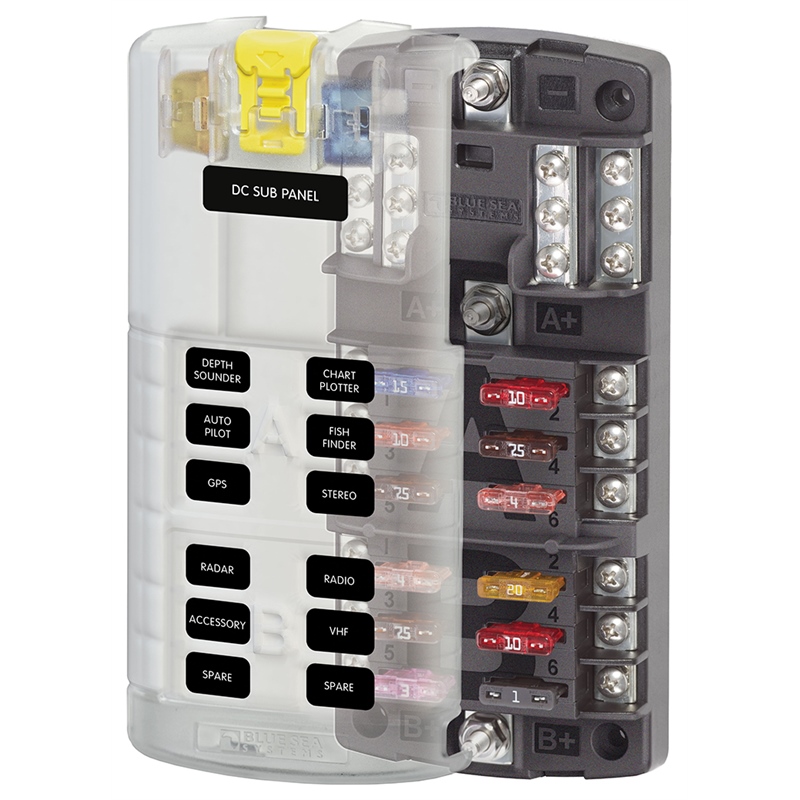

Blue Sea Systems 5032 ST Blade 12-Circuit Fuse Block with Negative Bus and Cover

Manufacturer

Blue Sea Systems

Picture for manufacturer Blue Sea Systems

Part Number

5032
11 reviews
03/12/2036 9:19 AM
Sale Price

$73.59

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Add To Cart

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Blue Sea Systems 5032 ST Blade Fuse Block provides organized circuit protection for marine and automotive electrical systems. This compact 12-circuit fuse block features both positive and negative distribution buses, making it ideal for consolidating multiple circuits when panel space is limited or for protecting electronic installations in tight spaces.

Key Features:

  • 12 independent circuits with ATO/ATC blade fuse protection (1-40 amps)
  • Integrated negative bus for consolidated ground connections
  • Tin-plated copper buses and fuse clips rated for 30A per circuit, 100A total
  • Protective cover with push-button latch meets ABYC/USCG insulation requirements
  • Built-in storage for two spare fuses in cover
  • Positive and negative bus connections use #10-32 studs
  • Accepts ring terminals or snap fork terminals
  • Label recesses accommodate Blue Sea Systems Small Format Labels
  • Suitable for 24-hour circuits

Specifications:

  • Maximum amperage: 100A per block, 30A per circuit
  • Maximum voltage: 32V DC
  • Dimensions: 6.5" L × 3.31" W × 1.5" D
  • Mounting: #8 screws
  • Weight: 0.75 lbs

This fuse block can be powered from a single breaker on your main distribution panel and supply protected power to 12 additional circuits. Includes 20 write-on labels and accepts square pre-made labels. Fuses sold separately. Backed by Blue Sea Systems lifetime warranty.

Products specifications

Amperage

100 Amps at 32 Volts DC

Mounting Hardware

ATO/ATC Fuses; Mounting Hardware (Sold Separately)

Type

Fuse Blocks

Warranty Details

Lifetime
