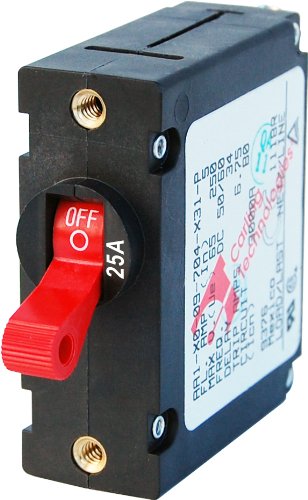

Blue Sea Systems 7217 AC/DC Single Pole Magnetic Circuit Breaker 25A Red

The Blue Sea Systems 7217 is an AC/DC single pole magnetic hydraulic circuit breaker rated for 25 amps with a distinctive red toggle. This circuit breaker serves as the industry standard for Blue Sea Systems electrical panels and is designed to meet the rigorous demands of marine electrical systems.

Key Features:

• Combines switching and circuit protection in a single compact device
• Trip-free design cannot be held in the "ON" position during fault current conditions for enhanced safety
• Magnetic hydraulic operation provides reliable overcurrent protection
• Standard delay timing for general purpose applications
• Rated for 10,000 switch cycles at rated amperage and voltage

Technical Specifications:

• Amperage Rating: 25 Amp
• Maximum Voltage: 277 Volts AC / 65 Volts DC
• Circuit Breaker Type: Magnetic Hydraulic - Trip Free
• Color: Red
• Delay: Standard

Certifications:

• Meets all American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE Marked for Europe
• CSA Certified for Canada

This circuit breaker is ideal for marine, RV, and other DC/AC electrical applications where reliable overcurrent protection is essential. The red actuator provides easy visual identification in electrical panels.
