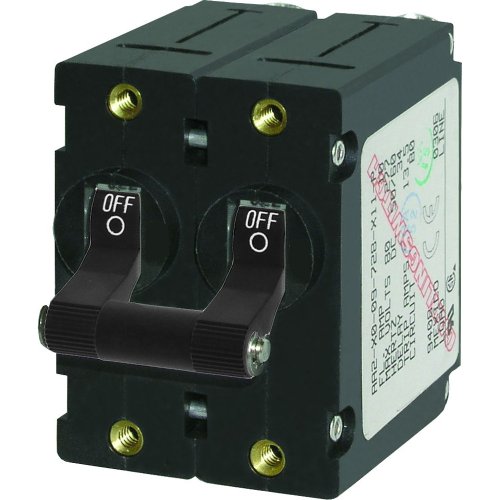

Blue Sea Systems 7236 A-Series Double Pole Toggle Circuit Breaker 20A Black

The Blue Sea Systems 7236 is a professional-grade A-Series toggle circuit breaker designed for marine, RV, and specialty vehicle electrical systems. This double pole, 20-amp circuit breaker combines switching and circuit protection into a single, space-saving device with magnetic hydraulic operation and trip-free design.

Key Features:

• Double pole configuration for complete circuit isolation
• 20A rating for both AC and DC systems (250V AC / 65V DC maximum)
• Magnetic hydraulic trip-free design cannot be held "ON" during fault conditions
• Toggle actuator for easy, visible operation
• Black finish for professional appearance
• 10,000 switching cycle durability rating
• #10-32 stainless steel terminal screws with 14 in-lb torque spec
• Operating temperature range: -40°C to 85°C

Certifications & Standards:

• Meets American Boat and Yacht Council (ABYC) standards
• UL 1077 recognized for North America
• TUV certified and CE marked for Europe
• CSA certified for Canada
• High interrupt capacity: 3000A @ 240V AC, 7500A @ 65V DC

The A-Series circuit breaker is the industry standard for Blue Sea Systems electrical panels and is commonly used as AC main circuit protection. Its robust construction and multiple safety certifications make it ideal for harsh marine environments and demanding mobile applications. Includes stainless steel #6-32 mounting screws for secure panel installation.
