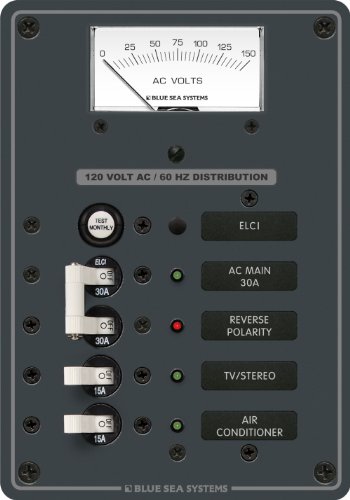

Blue Sea Systems 8102 ELCI Main with AC Panel - 30A 2 Position 120V

The Blue Sea Systems 8102 is a comprehensive electrical panel designed for marine applications, featuring an integrated 30A ELCI (Equipment Leakage Circuit Interrupter) main breaker with 2 AC branch circuit positions and a built-in voltmeter. This panel provides complete shore power protection for your vessel in compliance with ABYC E-11 standards.

Key Features:

• 30A AC ELCI main residual current circuit breaker with 30mA leakage trip amperage for whole-boat overcurrent and leakage protection
• Double pole main breaker design ensures both hot and neutral lines are protected
• Integrated voltmeter for monitoring incoming shore power voltage
• Red reverse polarity LED indicator alerts you to dangerous wiring conditions
• Backlit circuit label positions for easy identification in low-light conditions
• Green "ON" indicating LEDs for each circuit position
• 2 branch circuit positions for distributing power throughout your boat

Technical Specifications:

• Nominal Voltage: 120V AC
• Main Breaker: 30A double pole ELCI
• Leakage Trip Current: 30mA
• Dimensions: 7.50"W × 5.25"H × 3.50"D
• Weight: 2.25 lbs

The ELCI protection continuously monitors for current leakage to ground, automatically disconnecting power if leakage exceeds 30mA, protecting against electric shock drowning hazards. The panel's compact design and comprehensive protection make it ideal for upgrading older electrical systems or new boat construction projects requiring modern safety standards.
