Tailored circuit protection with a modern look

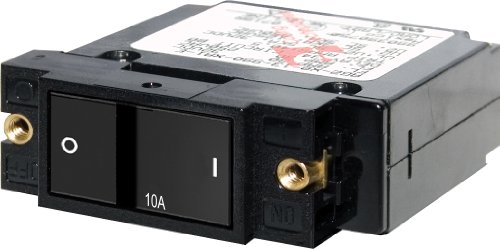

Rarely will a breaker panel come pre-installed with the exact circuit protection your system requires. Each electrical system is unique to the boat and the boat owner. It is inevitable that breakers will have to be changed to meet the demands of the existing or changing electrical loads. Blue Sea Systems makes it simple. The A-Series circuit breakers combine circuit protection and switching into a flat rocker and are designed to fit Blue Sea Systems 360 panels and SMS Panel enclosures. These modern looking breakers use the same mounting holes for a quick change to the correct protection. All A Series breakers are now CE marked and continue meet ABYC and USCG standards. These breakers are capable of handling short start-up current surges found in electric motors and other appliances without tripping. For added safety, a Trip-Free feature prevents the toggle from being held in the ON position when a fault is detected. These single pole breakers are available in 2.5A-50A protection; there will be one that will match your application and your breaker panel.
Key Features
- Combine switching and circuit protection into single toggle switch
- Compatible with AC or DC circuits
- Industry standard and compatible with Blue Sea Systems 360 electrical panels and SMS panel enclosures for simple change
- Trip-Free feature means switch cannot be held in ON position when a fault is detected
- Magnetic-hydraulic delay trip mechanism recognizes surges caused by start-up currents and will not trip
- Improved ability to interrupt higher current without failure
- Available in 2.5A to 50A ratings
- Color actuator indicates OFF position
- Lifetime warranty
Specifications
- Amperage: 2.5A-50A AC, 2.5A-50A DC
- Voltage: 240V AC, 32V DC
- Poles: 1
- Breaker Type:Magnetic Hydraulic- trip free
- Interrupt Capacity: 1500A @ 250V AC, 3000A @ 125V AC, 5000A @ 32V DC
- Mounting Screw: #6-32
- Terminal Screw: #10-32
- Approvals: CE, ABYC, UL 1077, TUV certified, CSA certified
