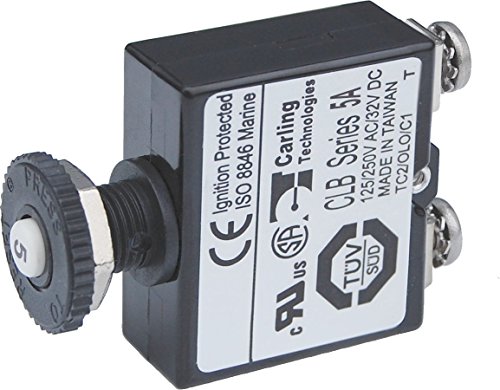

Blue Sea Systems 2130 Push Button Circuit Breaker - 5A 32V DC

The Blue Sea Systems 2130 is a compact 5-amp thermal push button circuit breaker designed for marine DC electrical systems up to 32 volts. This ignition-protected breaker is safe for installation on gasoline-powered boats and features a push-to-reset design with screw terminals for secure connections.

Key Features:

• 5 amp thermal trip protection with manual push-button reset
• "Trip free" design prevents manual override during fault conditions
• Compact design ideal for high-density circuit protection panels
• Ignition protected for safe gasoline boat installation
• Compatible with Blue Sea Systems WeatherDeck, Dual Battery Bank, and 360 Distribution Panels
• Optional waterproof boot available for wet environment protection

Technical Specifications:

• Maximum voltage: 32V DC
• Interrupt capacity: 3000A @ 14.7V / 2500A @ 28V
• Terminal type: #8 screw terminals (6 in-lb torque)
• Panel mount: 3/8-27 UNS threading (3/8" mounting hole)
• Operating temperature: -10°C to 60°C
• Weight: 0.09 lbs

This circuit breaker is suitable for both branch circuit protection and 24-hour circuit protection applications in marine, RV, and other DC power systems. The screw terminal design provides reliable connections for wire sizes compatible with #8 terminals.
