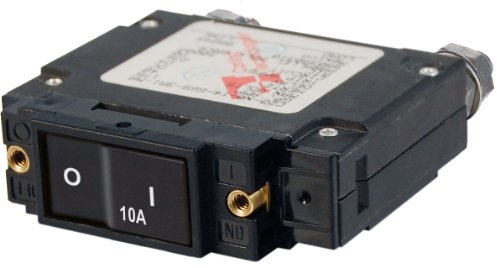

Blue Sea Systems 7541 C-Series Single Pole Circuit Breaker 10A Flat Rocker

The Blue Sea Systems 7541 C-Series Circuit Breaker combines circuit protection and switching functionality in a single, compact device designed for marine DC electrical systems. This single-pole, 10-amp magnetic hydraulic circuit breaker features a flat rocker actuator that sits flush in the ON position, eliminating the risk of accidental switching during operation.

Key Features:

• Flush-mounted rocker actuator in ON position prevents accidental switching
• Color-coded actuator clearly indicates OFF position
• Trip-free design cannot be held closed after circuit trip
• Ignition protected for safe installation on gasoline-powered vessels
• Magnetic hydraulic operation provides reliable overcurrent protection
• Panel mount design fits 1.25" x 0.75" cutout
• Ideal for protecting inverters, bow thrusters, and windlasses

Technical Specifications:

• Rating: 10A DC / 10A AC
• Maximum Voltage: 48V DC / 240V AC
• Interrupt Capacity: 5000A @ 32V DC, 3500A @ 240V AC
• Terminal Type: 1/4"-20 tin-plated brass stud terminals
• Operating Temperature: -40°C to 85°C
• Switching Cycles: 10,000
• Dimensions: 2.5"H x 0.75"W x 2.84"D
• Terminal Stud Torque: 35 in-lb (3.95 Nm)

The trip-free mechanism ensures the breaker will not reset when a short circuit is present, providing essential safety protection. Constructed with #6-32 stainless steel mounting screws and designed to meet marine environmental standards.
