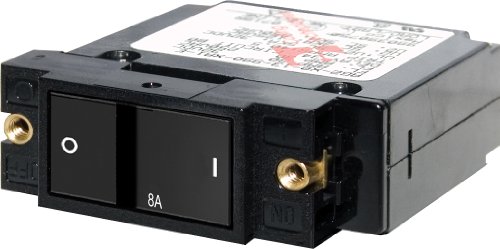

Blue Sea Systems 7401 Single Pole Circuit Breaker 8A 80V DC

The Blue Sea Systems 7401 is a single pole, small case magnetic hydraulic circuit breaker featuring a 2-inch flat rocker design for 8 amp circuit protection. This compact breaker is engineered for marine and automotive DC electrical systems, providing reliable overcurrent protection with trip-free operation that enhances safety in critical applications.

Key Features:

• 8 amp rating suitable for 12V and 24V DC systems
• Trip-free design prevents manual override during fault conditions
• Color-coded actuator clearly indicates OFF position
• Magnetic hydraulic technology for precise, temperature-compensated protection
• Compact 2-inch flat rocker form factor for space-efficient panel mounting
• Rated for 10,000 switch cycles at full amperage and voltage

Specifications:

• Amperage: 8A
• Maximum Voltage: 80V DC / 250V AC
• Circuit Breaker Type: Magnetic Hydraulic, Trip Free
• Pole Configuration: Single Pole
• Actuator Style: 2-inch Flat Rocker

Blue Sea Systems circuit breakers are ignition protected per ISO 8846 and SAE J1171 standards, making them ideal for marine applications where reliability and safety are paramount. The trip-free mechanism ensures the breaker cannot be manually held in the ON position during an overcurrent event, providing superior protection for your electrical system.
