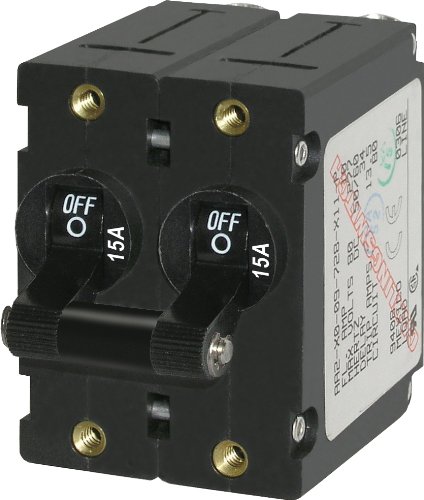

Industry standard Double pole circuit protection
Electrical systems are unique to each boat and boater. With changes in the equipment and accessories a change is usually required at the breaker panel. Blue Sea Systems makes it simple. The A-Series circuit breakers combine circuit protection and switching into a toggle switch and are designed to fit Blue Sea Systems traditional metal panels for a quick change to the correct protection. All A Series breakers are now CE marked and continue to meet ABYC and USCG standards. These breakers are capable of handling short start-up current surges found in electric motors and other appliances without tripping. For added safety, a Trip-Free feature prevents the toggle from being held in the ON position when a fault is detected. These double pole breakers are available in 15A-50A protection ratings.
Key Features
- Compatible with Blue Sea Systems traditional metal panels
- Combines switching and circuit protection in a toggle switch
- Compatible with AC and DC circuits
- Trip free feature prevents breaker from being held in ON position when a fault is detected on either of the two poles
- Lifetime warranty
Specifications
- Amperage:15A, 16A, 20A, 30A, 32A, 50A
- Actuator Style:Raised Rocker
- Poles:2
- Maximum Voltage:120V AC, 240V AC, 32V DC
- Interrupt Capacity:
- 1500A @ 250V AC (TUV)
- 3000A @ 120V AC,
- 3000A @ 240V AC
- 3000A @ 250V AC (UL 1077)
- 7500A @ 65V DC
- Circuit Breaker Type:Magnetic-Hydraulic- trip free
- Mounting Screw:#6-32
- Terminal Screw:#10-32
