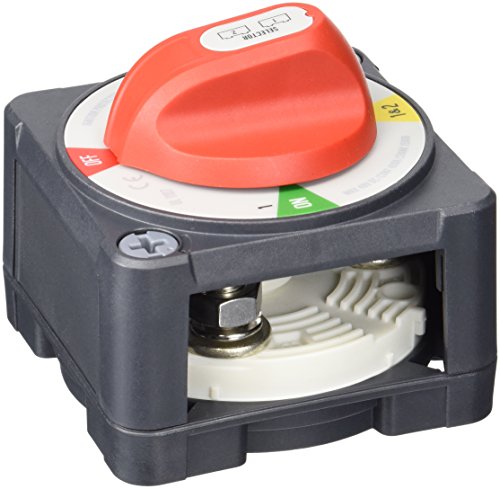

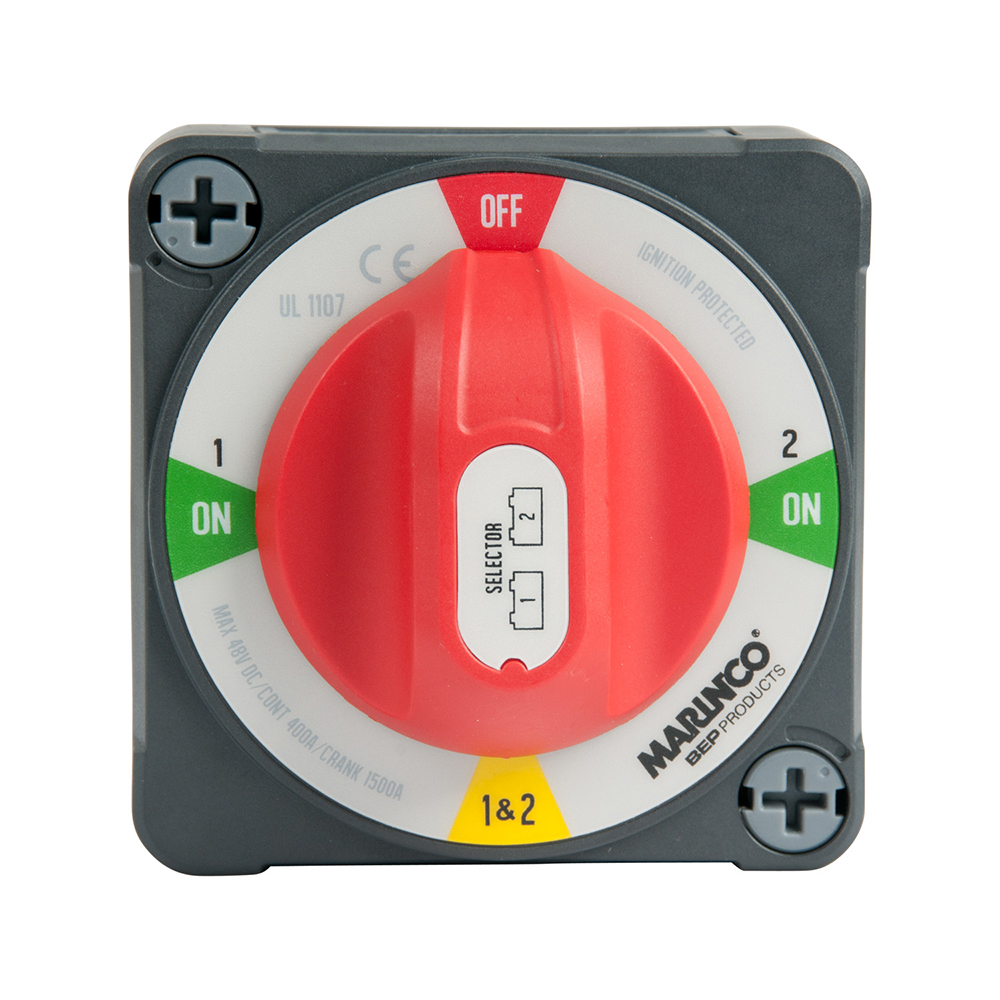

BEP Marine 771-S-EZ Pro Installer 400A EZ-Mount Battery Selector Switch 1-2-Both-Off

The BEP Marine 771-S-EZ Pro Installer 400A EZ-Mount battery selector switch (also called a battery switch or battery isolator switch) offers 1-2-Both-Off operation and lets you wire from the front for easier, more accessible cabling.

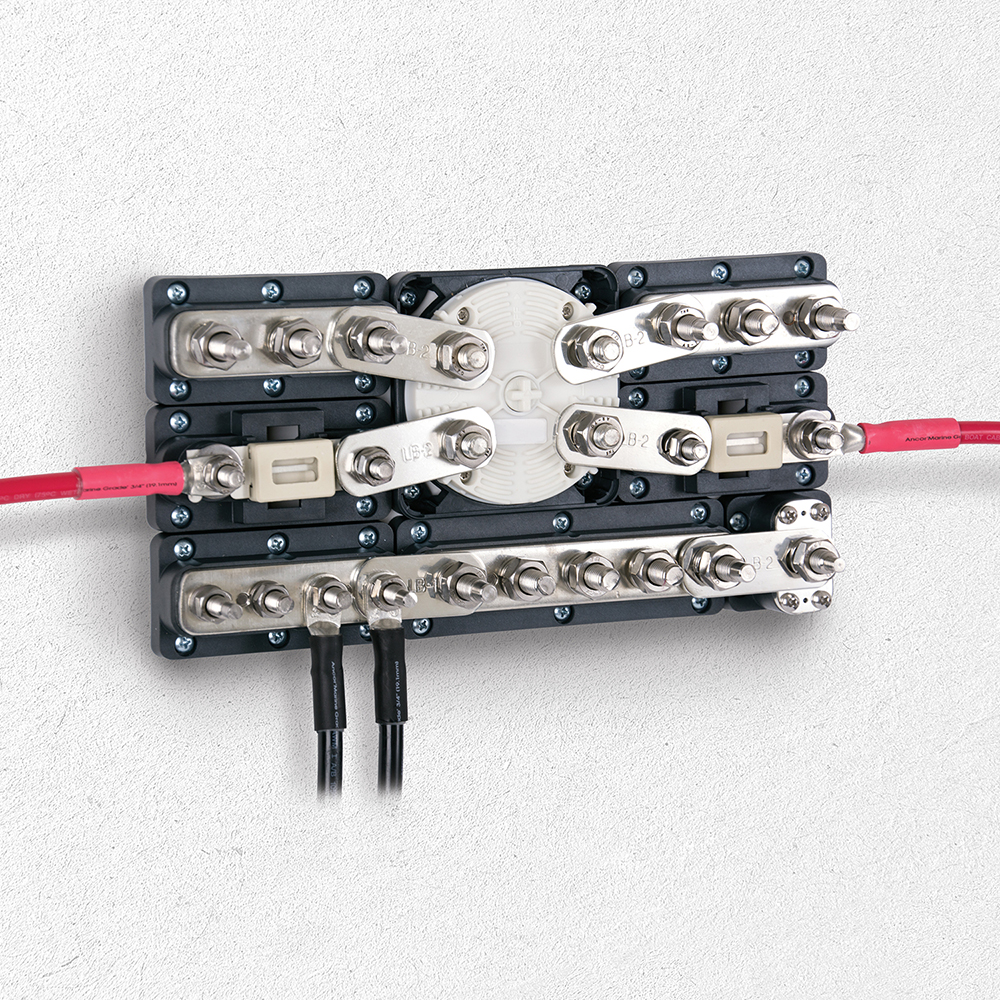

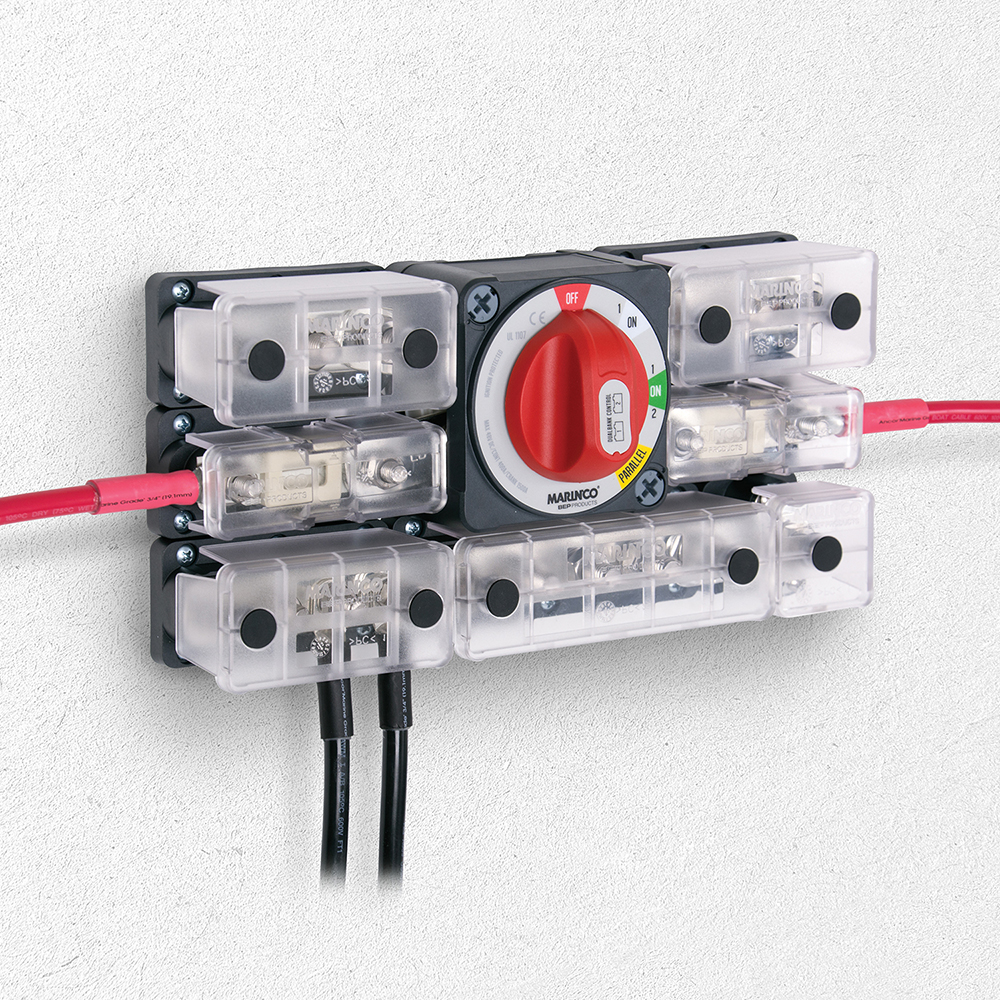

The EZ-Mount switch shares its interconnection height with the Pro Installer Busbar Range, so it clusters directly with those busbars for fast, compact installations. Its ratings, footprint and features match BEP's standard switches. It is built from materials intended to withstand the harsh marine environment.

Key Features:

• Front-wiring design with optimized cable access
• 1-2-Both-Off operation
• Tested to UL1107 ignition protection, CE
• Tinned copper 10 mm (3/8") studs
• Stainless steel washers and nuts
• Fiber reinforced plastic construction
• Waterproof to IP66
• Same interconnection height as Pro Installer busbars

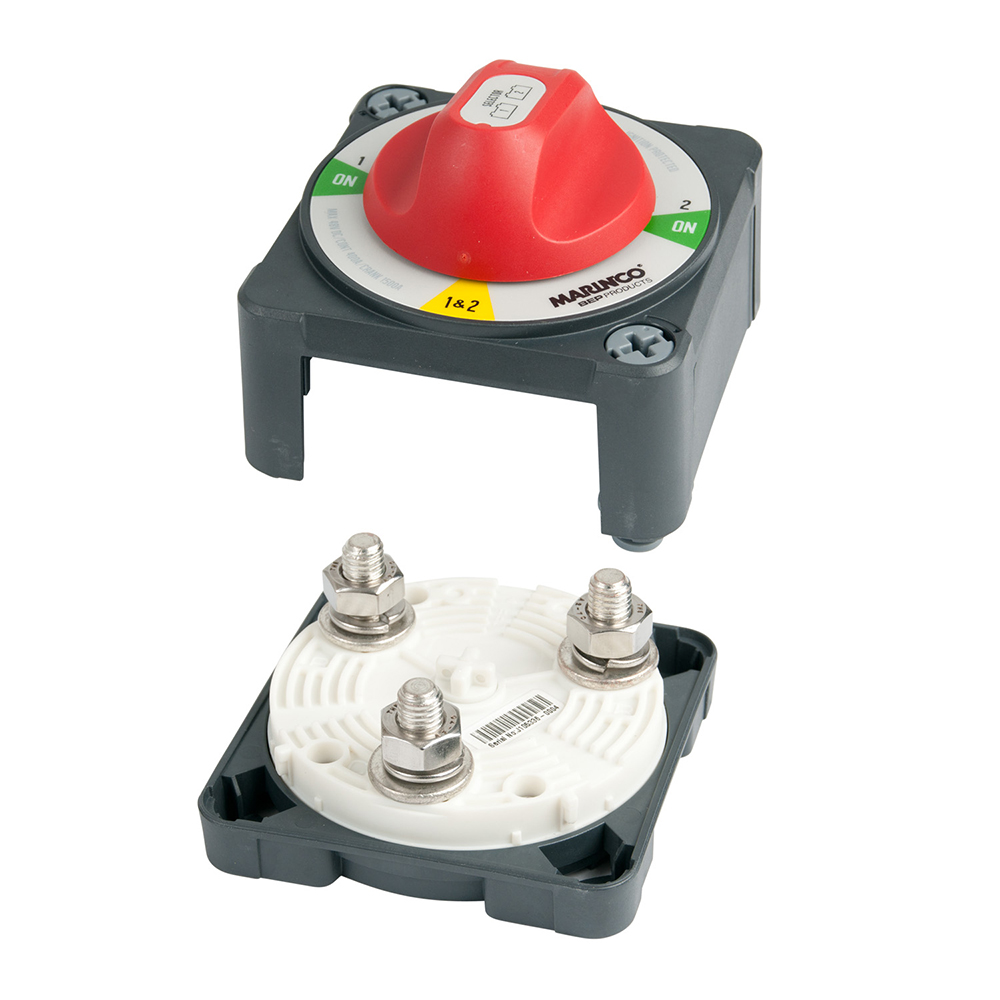

• Removable knob allows isolation during servicing
• 3 removable sideplates for protection
• Industry standard 3.85" x 3.85" footprint

Specifications:

• Rating: 400A continuous / 600A for 5 minutes intermittent / 1500A for 10 seconds cranking
• Voltage: 48V DC (for 12-48V systems)
• Mounting: Surface mount only
• Dimensions: 3.85" x 3.85" x 3.62"
• Operation: 1-2-Both-Off
• Studs: 3 x 10 mm

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
