Monitor your electrical system with a compact easy to read digital meter
Monitoring your electrical system keeps it functioning to its full potential, increases the lifespan of your batteries and alerts you to changes before they become issues. Blue Sea Systems provides a compact way to get electrical information in an easy to read LED display. Choose the right meter to provide just the information you need to confirm your systems are functioning. Available in single function displays to show AC voltage, DC voltage, current, or frequency. Install several single function meters to monitor formation simultaneously; or select a multimeter and page through the information using push button keys on the face.

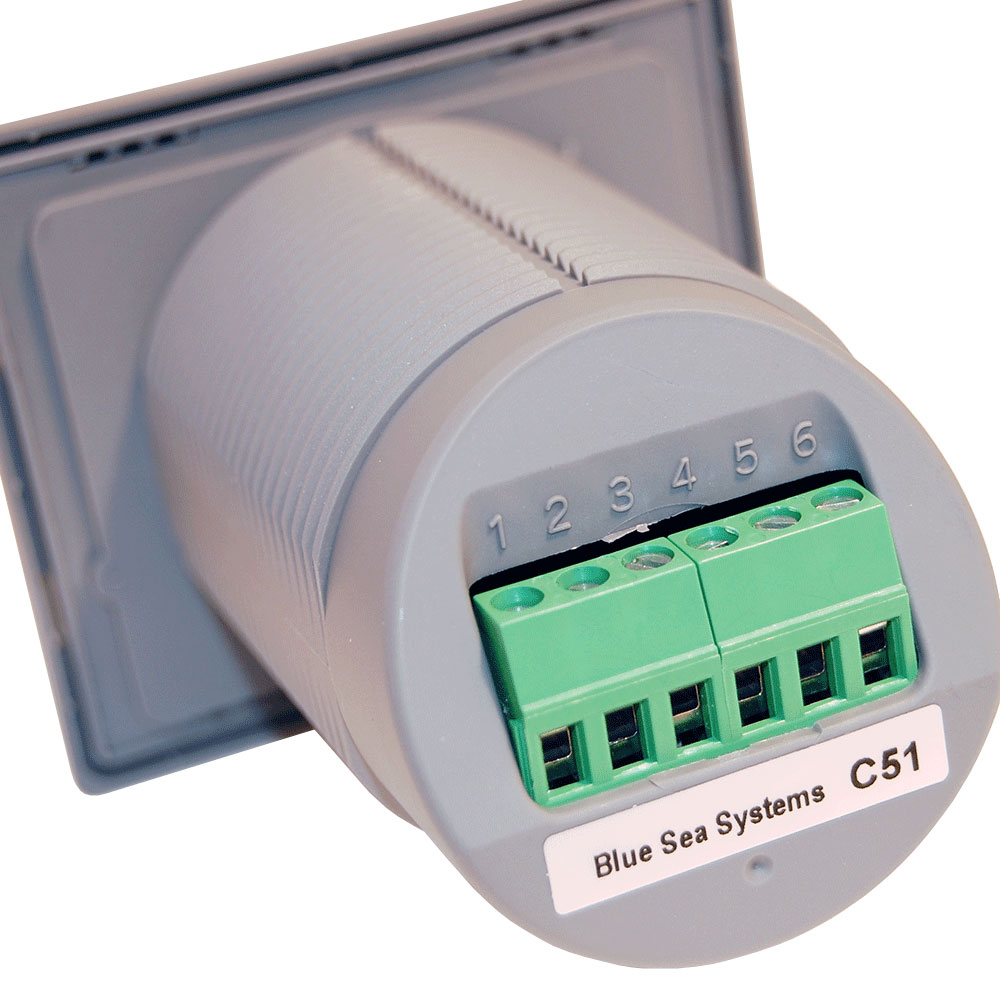

Installation is made easy by several mounting options. Surface mount these meters anywhere a 2" hole can be drilled and secure the display using a lock nut. These meters are compatible Blue Sea Systems breaker panels and can replace analog meters to add function and improve visibly. If an existing breaker panel is not available or does not have a meter cutout, the same look can be achieved using a dedicated mounting panel (model 288136).
Each meter offers three levels of brightness making the red LED digital display even easier on your eyes while using at night. Multimeters and single function meters with alarms are programmable to alert you to changes in the system using audible indicators. All meters have a sleep mode to help conserve power, some feature a programmable option that will automatically enter sleep mode after a set time period. Each display is spashproof from the front and will handle moderate exposure. These compact meters are ideal for staying on top your electrical system.
Key Features
- Compact for installation in tight locations
- Easy to read digital displays
- Available in single function or multifunction configurations
- Three mounting options for easy installation
- Compatible with Blue Sea Systems breaker panels with meter position
- Available with audible alarm to alert users to changes in electrical systsem
- Splashproof front for installation in moist environments
- Three levels of display brightness
- Red LED display for use at night
- Sleep mode to conserve power usage
- Three-year warranty

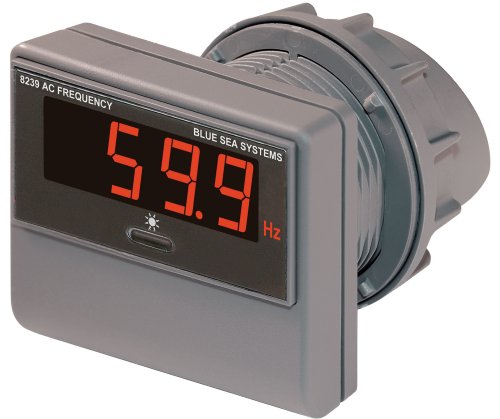

| Specifications | 8235 | 8236 | 8237 | 8239 | 8247 | 8248 | 8251 |
|---|
| AC DC | DC | DC | AC | AC | AC | DC | DC |
| Meter | Voltage | Current | Voltage | Frequency | Current, Freequency, Power, Voltage | Voltage, Current | Voltage |
| Function | 0 to 60V | to 500A | 80 to 270V | 40 to 90Hz | See single function display specs | See single function display specs | 0-60V |
| Alarms | None | High and low voltage | None | None | High and low voltage, High current | High and low voltage | High and low voltage |
| Display Character Size | 0.5625in | 0.5625in | 0.5625in | 0.5625in | 0.5625in | 0.5625in | 0.5625in |
| Input Voltage | 7-60V DC | 8-32V DC | 80-249V | 80-249V | 80-249V | 7-60V DC | 7-60V DC |
| Maximum Power Consumption | 1 Watt | 1 Watt | 1 Watt | 1 Watt | 1 Watt | 1 Watt | 1 Watt |
| Minimum Power Consumption | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt |
| Sleep Mode | Manual | Manual | Manual | Manual | Programmable | Programmable | Programmable |
