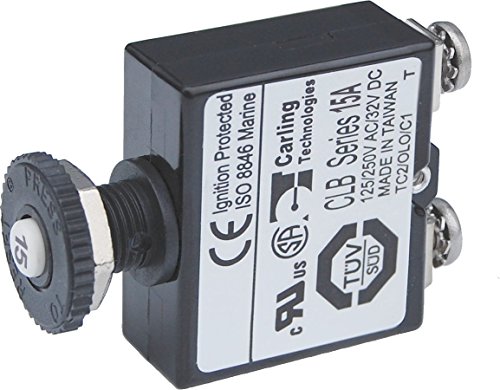

Blue Sea Systems 2133 15A Push Button Circuit Breaker

The Blue Sea Systems 2133 is a 15-amp thermal circuit breaker designed for marine DC electrical systems. This compact push-button reset breaker provides reliable overcurrent protection for branch circuits and can also be used for 24-hour circuit protection on boats and RVs.

Key Features:

• Push-to-reset operation with manual reset only design
• "Trip Free" design prevents breaker from being held "ON" during fault conditions
• Ignition protected for safe installation on gasoline-powered vessels
• Compact design enables high-density circuit protection configurations
• #8 screw terminal connections for secure wiring
• Compatible with Blue Sea Systems WeatherDeck panels and distribution systems
• Optional waterproof boot available for wet environment protection

Technical Specifications:

• Amperage Rating: 15A
• Maximum Voltage: 32V DC
• Interrupt Capacity: 3000A at 14.7V / 2500A at 28V
• Mounting: Panel mount with 3/8-27 UNS thread
• Operating Temperature Range: -10°C to 60°C
• Screw Terminal Torque: 6 in-lb (0.68 Nm)
• Weight: 0.09 lbs (0.04 kg)

This thermal trip circuit breaker is ideal for protecting lighting circuits, electronics, and other 12V or 24V DC electrical loads on marine vessels and recreational vehicles.
