Blue Sea Systems 7507 DeckHand Dimmer 12 Amp 12V DC Marine Lighting Control

The Blue Sea Systems DeckHand Dimmer 7507 provides digital dimming control for non-regulated LED, halogen, and incandescent lighting on marine vessels. This 12 amp dimmer digitally adjusts voltage to smoothly control lighting brightness from 0% to 100%, allowing you to customize the ambiance of cabin spaces with precision.

Key Features:

• Compatible with unregulated LED, halogen, and incandescent lighting fixtures
• Digital voltage adjustment provides smooth dimming control from 0-100%
• Built-in memory retains last dimmer setting for convenient operation
• Illuminated exit feature automatically turns lights off after a set time delay

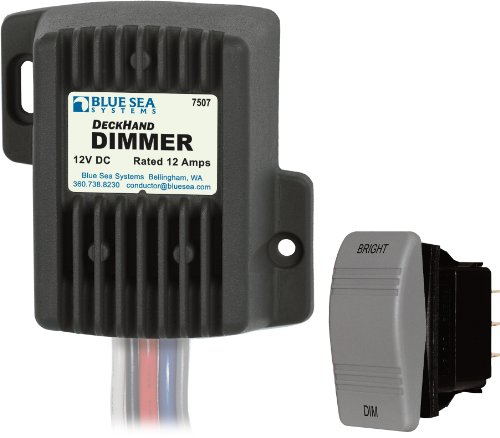

• Includes control box and dedicated offset Contura rocker switch
• Offset rocker switch design allows multiple dimmers to be installed close together
• 12 amp maximum current capacity for mid-sized lighting circuits
• Backed by Blue Sea Systems lifetime warranty

Technical Specifications:

• Nominal Voltage: 12V DC
• Maximum Amperage: 12A
• Maximum Parasitic Current: 2mA
• Dimensions: 3.5"H x 2.625"W
• Certifications: CE, ISO 8846, SAE J1171

The DeckHand dimmer eliminates the need for constant readjustment by remembering your preferred brightness setting. The illuminated exit timer ensures safe passage off your vessel by keeping lights on for a preset duration before automatically switching off. Designed specifically for the marine environment with appropriate certifications for ignition protection.
