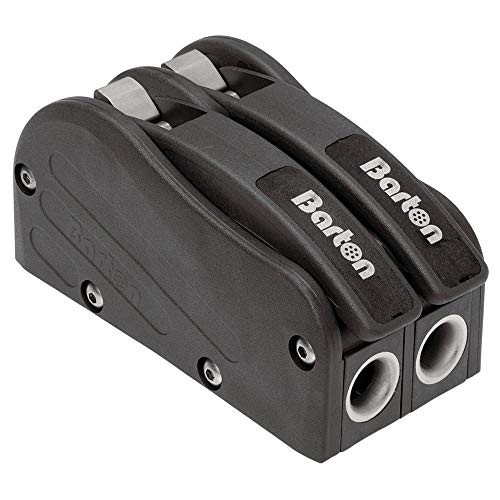

Barton Marine 81 501 DO 550 Double Rope Clutch

The Barton Marine DO 550 Double Rope Clutch is engineered for both cruising and racing yachts, delivering reliable line control in demanding marine conditions. This double-unit clutch system combines modern lightweight materials with precision engineering to provide superior performance and durability.

Advanced Construction:

Manufactured from high-grade plastics that offer exceptional strength, light weight, and impact resistance. The cams and aluminum bases feature marine-grade 'Spectro' anodizing for maximum wear resistance and extended service life. Stainless steel rope fairleads at both entry and exit points protect both the clutch and your lines from premature wear.

True Clutch Performance:

The authentic clutch mechanism allows for line adjustment even when closed and locked, with minimal slippage. Release under load is smooth and requires minimal effort, while the opening and closing action remains precise and easy to operate—even with cold, wet hands.

Key Features:

• Double clutch configuration for controlling two lines
• Removable color-coded handle inserts for easy line identification (main, genoa, spinnaker, etc.)
• Bolt-together construction for easy servicing and part replacement
• Stainless steel rope fairleads protect lines and reduce wear
• Marine-grade anodized aluminum cams and base
• Ergonomic handle design for reliable operation in all conditions
• High-performance polymer construction resists impact and UV damage

Technical Specifications:

• Dimensions: 5.25" L x 2.5" W x 2.5" H (13.3 x 6.3 x 6.3 cm)
• Mounting hole centers: 3.125" (79 mm)
• Maximum rope diameter: 0.47" (12 mm)
• Maximum holding power: 1,212 lbs (550 kg)
• Weight: 1.2 lbs (544 g)

Sold individually. Ideal for applications requiring dual-line control on sailboats and racing yachts.
