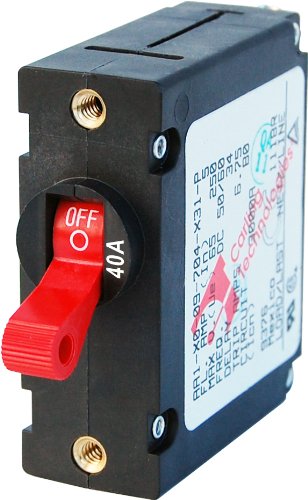

Blue Sea Systems 7225 AC/DC Single Pole Magnetic Circuit Breaker - 40A Red

The Blue Sea Systems 7225 is an AC/DC single pole magnetic hydraulic circuit breaker rated for 40 amps with a distinctive red toggle. This world-class circuit breaker serves as the industry standard for Blue Sea Systems electrical panels, combining switching functionality and circuit protection in a single compact device.

Key Features:

• Trip-free design prevents the breaker from being held in the "ON" position during fault current conditions
• Magnetic hydraulic operation provides reliable overcurrent protection
• Standard delay timing for general marine electrical applications
• Rated for 10,000 switch cycles at full amperage and voltage
• Maximum voltage capacity of 277 Volts AC or 65 Volts DC
• Red toggle for easy identification and color-coding of circuits

Certifications:

• Meets all American Boat and Yacht Council (ABYC) standards
• UL 1077 Recognized
• TÜV Certified
• CE marked for European compliance
• CSA Certified for Canada

This circuit breaker is designed for marine, RV, and other DC electrical systems where reliable overcurrent protection is critical. The single pole configuration makes it ideal for protecting individual branch circuits in distribution panels.
