Change WeatherDeck switch function or use as a stand-alone toggle switch

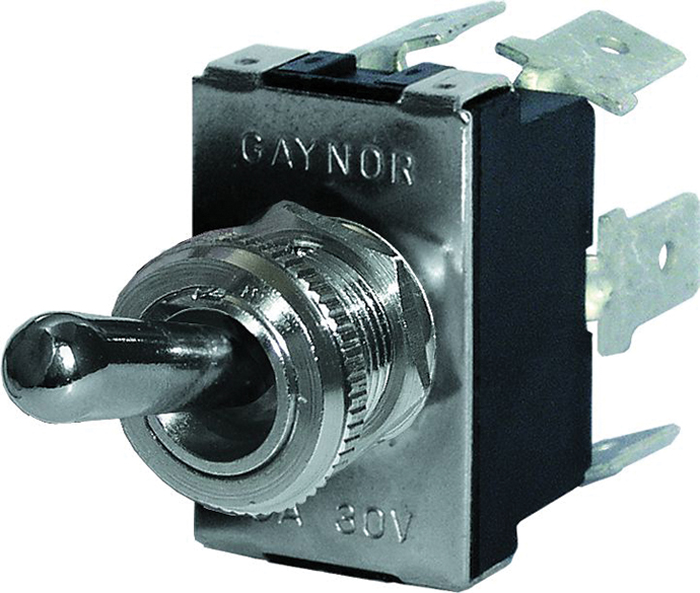

An exact replacement for switches on Blue Sea Systems WeatherDeck panels, these 2 or 3 position switches can be used to change circuit function. Designed using nickel-plated brass and phenolic components these small toggle switches can also stand alone and fit just about anywhere a 1/2" hole can drilled. Quick connect tabs make wiring simple. Available toggle boot replaces dress nut to provide additional protection from dust and moisture. When used in a WeatherDeck with toggle boot, an IP67 rating (temporary immersion for 30minutes) is achieved.
Available in following styles
- 4150: OFF-ON: lights,blowers,electronics
- 4151: OFF- (ON-momentary): Horn or windshield wipers
- 4152: ON-OFF-ON Combining nav lights or anchor lights with independent bulbs
- 4153: (ON-momentary)-OFF-ON: Bilge pumps
- 4154: (ON-momentary)-OFF-(ON-momentary): Electric hatches and engine covers
- 4155: ON-OFF-ON:Combining nav lights with anchor light with shared bulbs
Key Features
- Nickel-plated brass and phenolic construction for marine use.

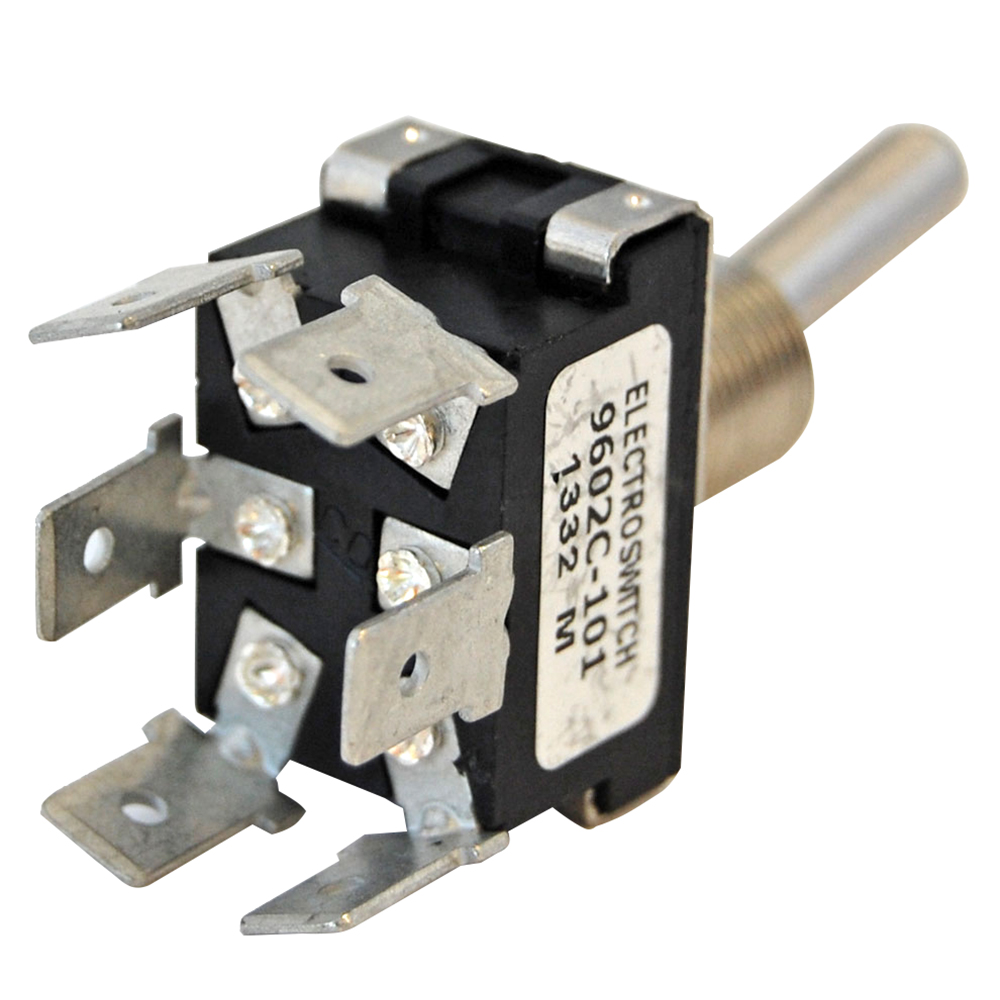

- Quick connectors make installation and wiring easy
- Available rubber boots to cover toggle (model # 11975422)
- Mounts easily in material up to 1/4" thick
- Lifetime warranty
Specifications
- Switch Type 4150: SPST (single pole, single throw), OFF-ON
- Switch Type 4151: SPST (single pole, single throw), OFF-(ON)
- Switch Type 4152: SPDT (single pole, double throw), ON-OFF-ON
- Switch Type 4153: SPDT (single pole, double throw), (ON)-OFF-ON
- Switch Type 4154: SPDT (single pole, double throw) , (ON)-OFF-(ON)

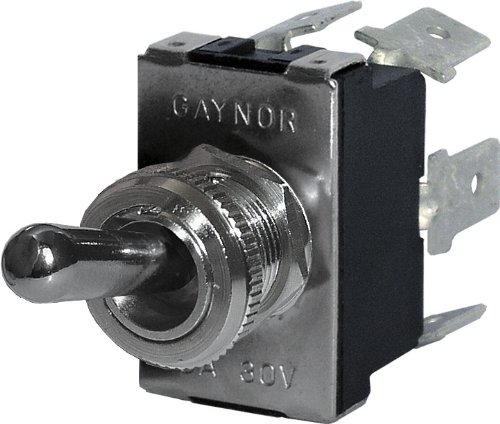

- Switch Type 4155: DPDT (double pole, double throw), ON-OFF-ON
- Positions: 2, 3
- Amperage: 15A@125V AC, 15A @ 12V DC, 10A @ 250V AC (4155 5A@12V DC)
- Voltage: 250V (4155 12V DC only)
- Conductors: 2, 3, 6 (4155)
- Material: Nickel-plated and phenolic body
- Dimensions 5/8"W x 1 1/8"L x 2"D
