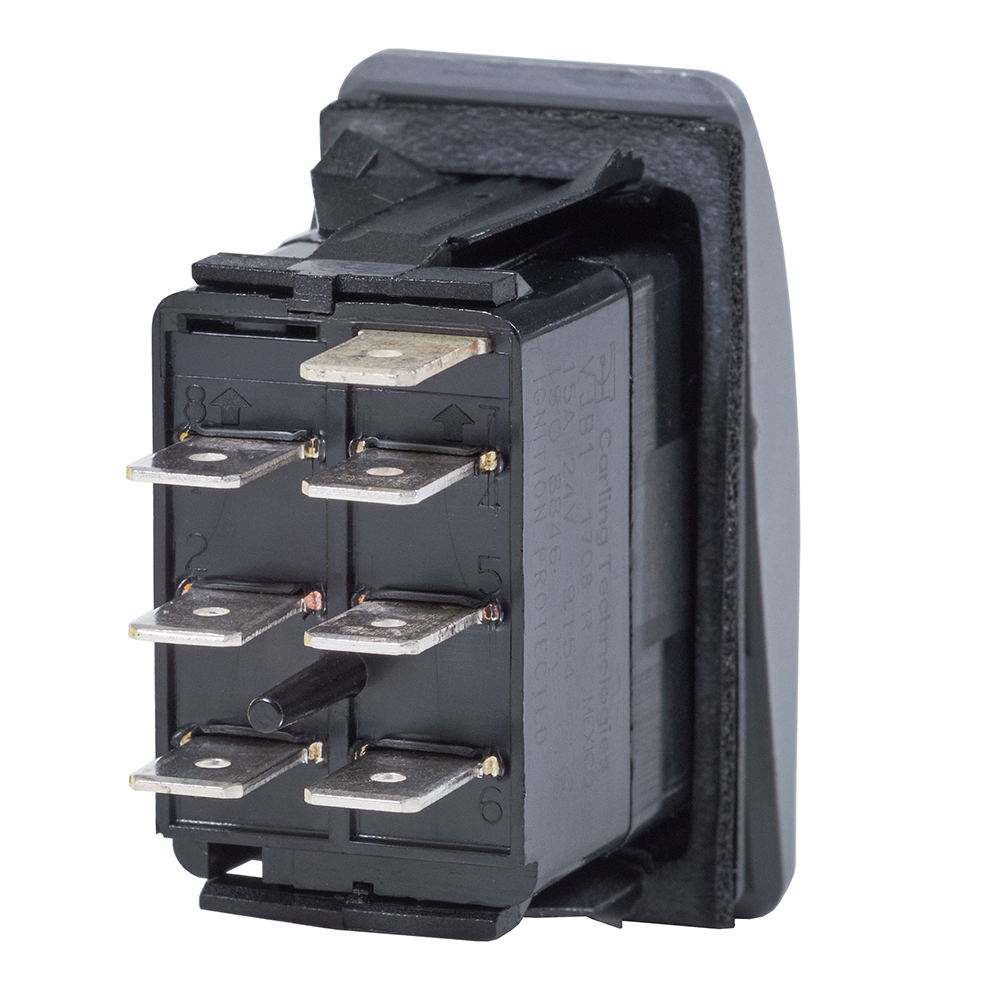

Blue Sea Systems 7936 Contura II DPDT Switch - ON-OFF-ON Water Resistant Black

The Blue Sea Systems 7936 Contura II Switch is a water-resistant DPDT (Double Pole/Double Throw) rocker switch designed for demanding marine and automotive environments. This ON-OFF-ON switch features a black actuator with dual embedded LEDs for clear status indication in low-light conditions.

Key Features:

• DPDT (Double Pole/Double Throw) configuration with ON-OFF-ON switching action
• Water-resistant design with internal and external gasket panel seals
• Vibration, shock, thermoshock, moisture, and salt spray resistant construction
• Two embedded LEDs rated for 100,000 hours of operation
• 18mA LED operating current for efficient power consumption
• Wide operating temperature range: -40°C to 85°C (-40°F to 185°F)
• Rated for 20A at 12V DC or 15A at 24V DC maximum amperage
• Compatible with Blue Sea Systems Contura Water Resistant Panels and Switch Mounting Panels

Technical Specifications:

• Switch Type: DPDT (Double Pole/Double Throw)
• Switching Action: ON-OFF-ON
• Actuator Color: Black (Contura II style)
• Maximum Current: 20A @ 12V DC / 15A @ 24V DC
• LED Indicator: Dual embedded LEDs, illuminated in ON positions
• Weight: 0.09 lbs (0.04 kg)

Common applications include combining navigation lights or anchor lights with shared bulbs, allowing you to select between two different lighting circuits or functions. The ruggedized construction makes this switch ideal for boats, RVs, and other mobile applications where reliability is critical.
