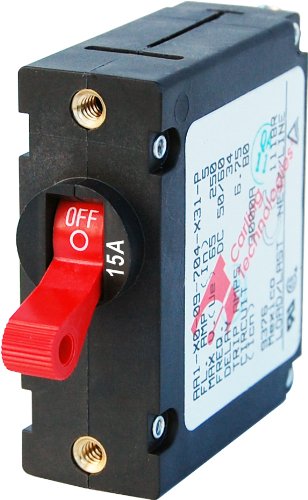

Blue Sea Systems 7209 AC/DC Single Pole Magnetic Circuit Breaker 15A Red

The Blue Sea Systems 7209 is an AC/DC single pole magnetic hydraulic circuit breaker rated for 15 amps with a distinctive red switch. This world circuit breaker serves as the industry standard for Blue Sea Systems electrical panels, combining switching and circuit protection into a single compact device.

Key Features:

• Trip-free design prevents the breaker from being held in the "ON" position during fault current conditions
• Magnetic hydraulic technology provides reliable overcurrent protection
• Standard delay timing for general circuit protection applications
• Single pole configuration for individual circuit control
• Red actuator for easy visual identification

Technical Specifications:

• Current Rating: 15 Amp
• Maximum Voltage: 277 Volts AC / 65 Volts DC
• Circuit Breaker Type: Magnetic Hydraulic, Trip-Free
• Rated Switch Cycles: 10,000 at rated amperage and voltage

Certifications:

• Meets American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE Marked for Europe
• CSA Certified for Canada

This circuit breaker is designed for marine, RV, and mobile power applications where reliable overcurrent protection is essential. The magnetic hydraulic mechanism provides consistent performance across a wide range of environmental conditions.
