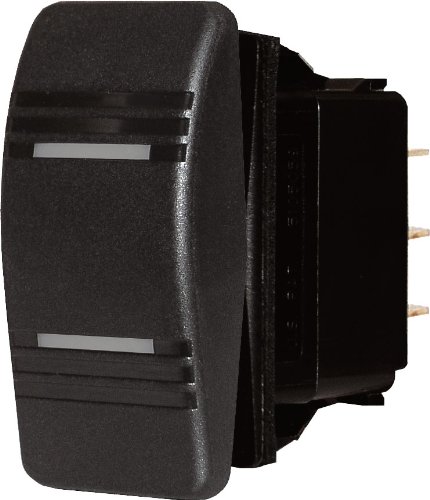

Change switch function on Blue Sea Systems water resistant panels with Contura switches
An exact replacement for switches on Blue Sea Systems Contura III water resistant panels, these 2 or 3 position switches can be used to change circuit function within the panel. Internal and external seals allow these vibration resistant switches to stand up to saltwater spray and freshwater washdowns. They are ideal for installations on the fly bridge or in open cockpits. The modern looking rocker switch features an LED to indicate which circuit is ON. Switches with two ON positions have separate LEDs to indicate which of the two circuits has power. Available in Black or Gray to match Blue Sea System panel switches. These switches can also be installed as a stand alone using the cutout template below.
Available in following styles and common uses
- 8230: OFF-ON: lights,blowers,electronics
- 8275: ON-ON: Switching between shunts or current transformers with one meter
- 8282: ON-OFF: Lights, blowers, electronics
- 8284: (ON-momentary)-OFF-ON: Bilge pumps
- 8286: ON-OFF-ON: Combining nav lights with anchor light with shared bulbs
Key Features
- Internal and external seals allow for installation on the fly bridge or in open cockpit boats
- Quick connectors make installation and wiring easy
- Lifetime warranty
Specifications
- Switch Type 8230: SPST (single pole, single throw), OFF-ON
- Switch Type 8275: DPDT (double pole, double throw), ON-ON
- Switch Type 8282: SPST (single pole, single throw), OFF-ON
- Switch Type 8284: SPDT (single pole, double throw), (ON)-OFF-ON
- Switch Type 8286: DPDT (double pole, double throw) , ON-OFF-ON
- Positions: 2, 3
- Amperage: 15A @ 12V DC, 20A@24V DC
- Voltage: 250V (4155 12V DC only)
- Conductors: 3, 4 (8284), 7(8275,8286)
- Material: Nickel-plated and phenolic body
- Dimensions 1"W x 1 15/16"L x 1 1/2"D (switch body only)
- Approvals: UL 1500, ISO8846 ignition protection requirements
