Installing a battery switch just got easier

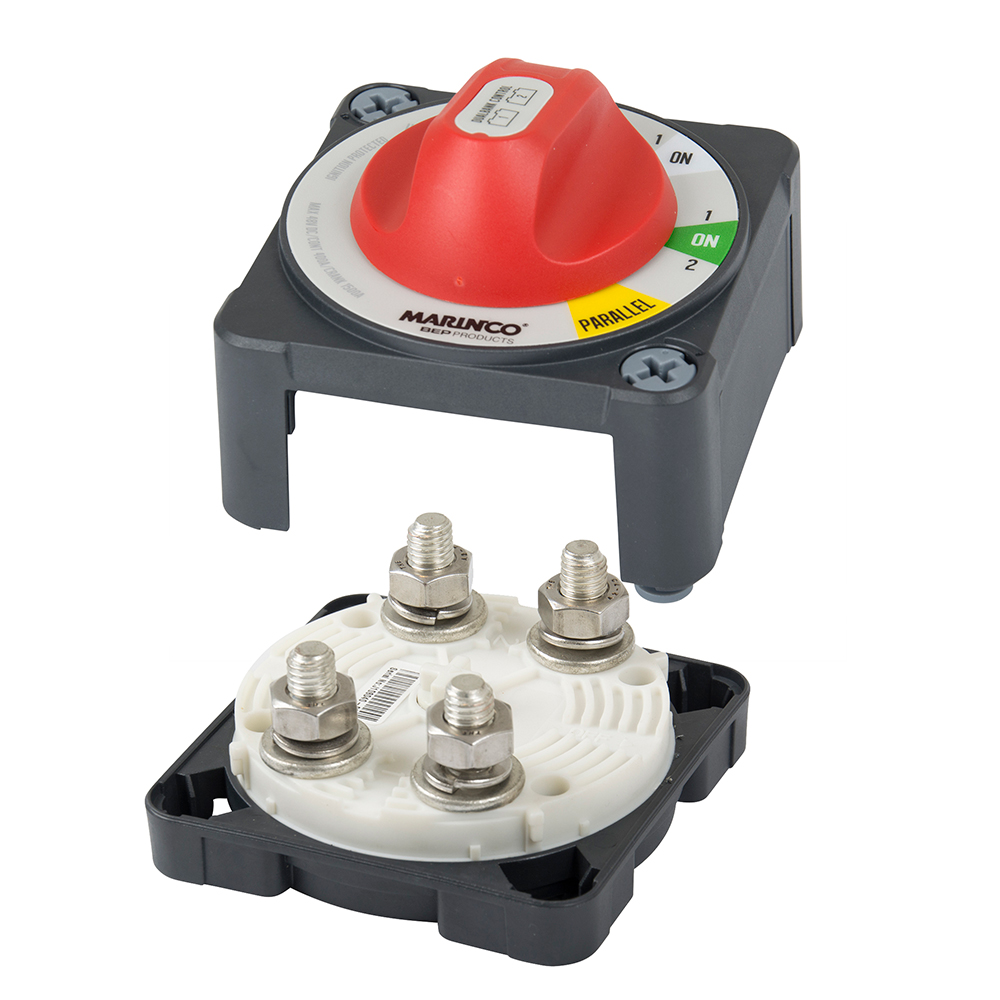

BEP/Marinco Pro Installer series components are designed to reduce installation times by making it easier. These revolutionary battery switches allow you to wire from the front. Simply remove the cover, mount the backing plate, run the wires, and then snap the cover and actuator back in place. Never has installation been so easy; battling stiff battery cables while trying to mount the switch has been eliminated. These high quality, durable switches accept large cables with multiple lugs, and feature intuitive, ergonomic switch positioning and clear graphics to indicate switch position.
The EZ-Mount switches have a compact, industry standard footprint and the shared interconnection height to “cluster” directly with other Pro Installer products, saving valuable onboard space while speeding up the installation process. They meet rigorous global standards and are constructed for longevity in the marine environment.

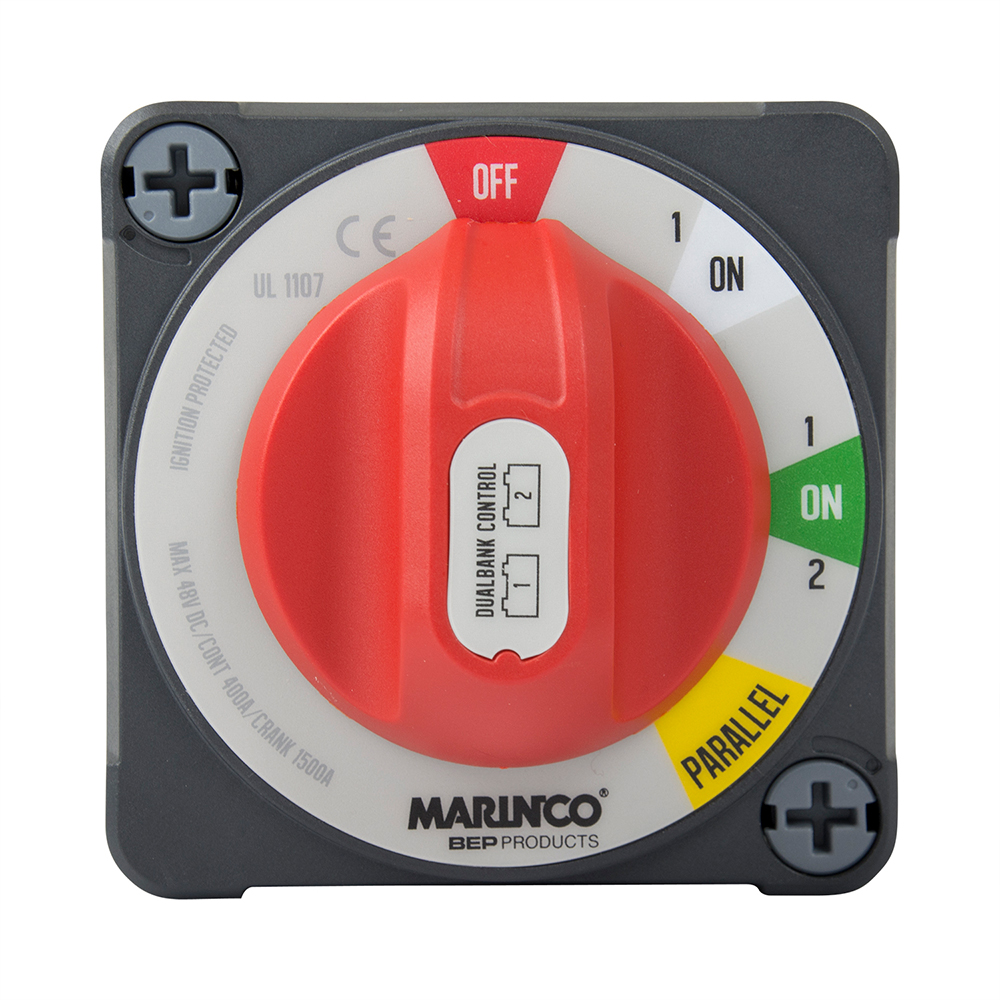

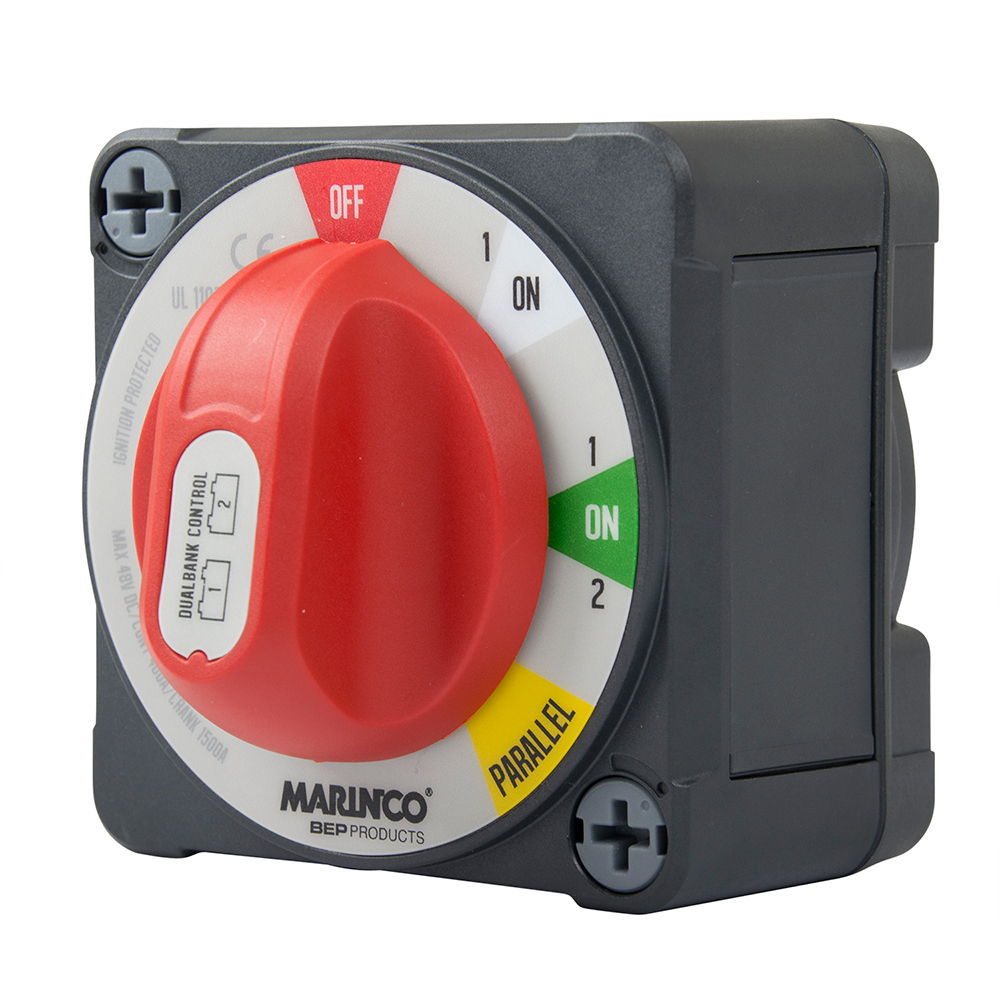

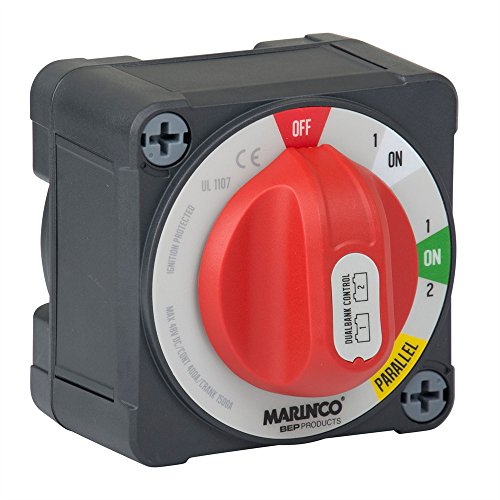

The Dual Bank Control Battery Switch puts features normally found on a system of switches into a single switch. This battery switch allows you to turn ON two battery banks while keeping them separated. This prevents accidental discharging of one bank if the stereo is left on or the trolling motor run too much. For those times then the battery does get discharged, an emergency parallel is available to link the batteries to make a radio call or start the engine. Finally, there is a third selection that allows the user to isolate the engine battery while maintaining power from the house bank giving you light while servicing the engine.
Key Features
- Revolutionary wire from the front design makes installation faster and easier
- Unique four position switch with engine battery isolation and emergency parallel features
- Corrosion resistant fiber reinforced plastic designed to stand up to marine environment
- Shares same interconnection height with other Pro Installer products for use with link bars: eliminating time spent fabricating and struggling with short jumper cables
- Interconnection with other Pro Installer products reduces overall footprint of the system
- Removable knob adds a level of security and offers a service lockout feature
- Tinned copper terminal studs offer excellent conductivity and corrosion resistance
- Ignition protected; can be installed in engine rooms of gasoline powered boats
- IP67 rated; can withstand powerful water jets
- Five-year warranty
Specifications
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 48V
- Continuous Rating: 400A
- Intermittent Rating (duration): 600A (5min)
- Cranking Rating (15Sec): 1500A
- Battery Inputs: 2
- Cable Size to meet ratings: 1/0 AWG
- Mounting Holes: #10
- Terminal Stud size: 3/8”
- Dimensions: 3 7/8"W x 3 7/8"H x 3 5/8"D
