The ideal companion to an electronics installation or switch panel that does not provide circuit protection

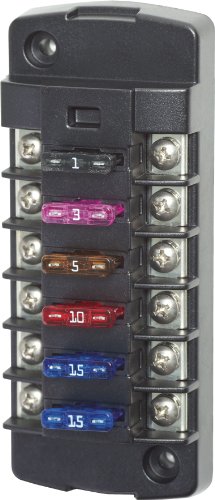

Fuse blocks are an effective method of protection to prevent damage to wiring and possible fire caused by an over-loaded or short circuit. These Blue Sea Systems fuse blocks can provide protection from 1A-30A and are great for new installations or to combine branch circuits with inline fuses. Often used for electronic installations to tailor protection to each component, these fuse blocks are also a great when used in conjunction with switch panels that lack circuit protection. 6 independent position fuse block provides inline protection without a common positive or negative bus. Note: these fuse blocks do not include a cover. See link below for fuse blocks that include cover.
Features:
- Compact design surface mounts for easy installation
- Terminals are easily accessed from both sides
- Tin-plated copper buses and fuse clips give up to 30A per circuit protection
- Positive distribution bus with #8-32 terminal screws
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
- Lifetime warranty
Specifications
- Circuits: 6
- Maximum Amperage: 40A per jumped circuit group
- Maximum Voltage: 32V
- Mounting: # 8 screw
- Terminal stud: #10-32
- Dimensions 5037: 5 3/16"L x 2 1/8"W x 1 1/2"H
